Results
|
Specimen
1C:
embryonic day 10.75
(more )
Specimen
1C:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 10.75
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Structure |
Level |
Pattern |
Image |
Note |
TS18: cerebellum primordium |
Present |
Regionally restricted |
1C
|
Expression was detected in presumptive cerebellar nuclei progenitors.
|
Specimen
3B:
embryonic day 11.5
(more )
Specimen
3B:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 11.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Structure |
Level |
Pattern |
Image |
Note |
TS19: cerebellum primordium |
Present |
Regionally restricted |
3B
|
Expression was detected in presumptive cerebellar nuclei neuronal precursors.
|
Specimen
3B':
embryonic day 11.5
(more )
Specimen
3B':
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 11.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Structure |
Level |
Pattern |
Image |
Note |
TS19: cerebellum primordium |
Present |
Regionally restricted |
3B'
|
Expression was detected in presumptive cerebellar nuclei neuronal precursors.
|
Specimen
3C Ngn2, ovl:
embryonic day 11.5
(more )
Note: ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Hes5 (assay MGI:5561124).
Specimen
3C Ngn2, ovl:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 11.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Hes5 (assay MGI:5561124).
|
Structure |
Level |
Pattern |
Image |
Note |
TS19: cerebellum primordium |
Present |
Regionally restricted |
3C Ngn2
,
3C ovl
|
Expression was detected in presumptive cerebellar nuclei neuronal precursors that are located outside the Hes5 expression domain.
|
Specimen
4G, F/G inlay, G/H inlay:
embryonic day 12.5
(more )
Note: Inlay - Adjacent sections were pseudocolored and superimposed. Colors: red - Neurog2; green - Ptf1a (F/G; assay MGI:5562341) or Ascl1 (G/H; assay MGI:5560710).
Specimen
4G, F/G inlay, G/H inlay:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
Inlay - Adjacent sections were pseudocolored and superimposed. Colors: red - Neurog2; green - Ptf1a (F/G; assay MGI:5562341) or Ascl1 (G/H; assay MGI:5560710).
|
Specimen
4G', F'/G' inlay, G'/H' inlay:
embryonic day 12.5
(more )
Note: Inlay - Adjacent sections were pseudocolored and superimposed. Colors: red - Neurog2; green - Ptf1a (F'/G'; assay MGI:5562341) or Ascl1 (G'/H'; assay MGI:5560710).
Specimen
4G', F'/G' inlay, G'/H' inlay:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
Inlay - Adjacent sections were pseudocolored and superimposed. Colors: red - Neurog2; green - Ptf1a (F'/G'; assay MGI:5562341) or Ascl1 (G'/H'; assay MGI:5560710).
|

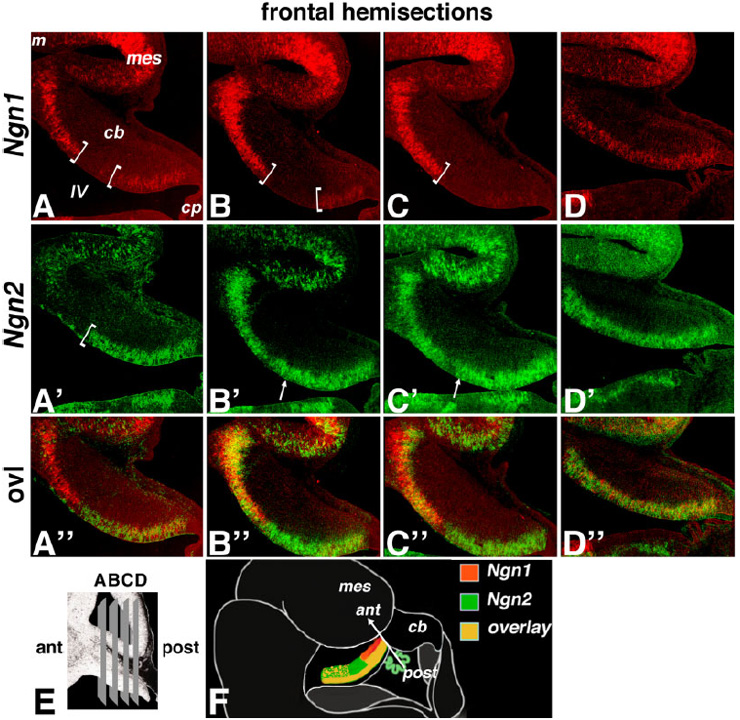

Specimen
5A',A":
embryonic day 12.5
(more )
Note: ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
Specimen
5A',A":
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
|
Structure |
Level |
Pattern |
Image |
Note |
TS20: cerebellum primordium |
Present |
Regionally restricted |
5A''
,
5A'
|
In anterior territories of the cerebellar ventricular zone, expression was detected in the lateral ventricular zone. There was overlap with Ngn1 (Neurog1) in posterior territories.
|
Specimen
5B',B":
embryonic day 12.5
(more )
Note: ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
Specimen
5B',B":
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
|
Structure |
Level |
Pattern |
Image |
Note |
TS20: cerebellum primordium |
Present |
Regionally restricted |
5B''
,
5B'
|
In anterior territories of the cerebellar ventricular zone, expression was detected in the lateral ventricular zone. There was overlap with Ngn1 (Neurog1) in posterior territories.
|
Specimen
5C',C":
embryonic day 12.5
(more )
Note: ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
Specimen
5C',C":
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
|
Structure |
Level |
Pattern |
Image |
Note |
TS20: cerebellum primordium |
Present |
Regionally restricted |
5C''
,
5C'
|
In anterior territories of the cerebellar ventricular zone, expression was detected in the lateral ventricular zone. There was overlap with Ngn1 (Neurog1) in posterior territories.
|
Specimen
5D',D":
embryonic day 12.5
(more )
Note: ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
Specimen
5D',D":
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Neurog1 (assay MGI:5561118).
|
Structure |
Level |
Pattern |
Image |
Note |
TS20: cerebellum primordium |
Present |
Regionally restricted |
5D'
,
5D''
|
In anterior territories of the cerebellar ventricular zone, expression was detected in the lateral ventricular zone. There was overlap with Ngn1 (Neurog1) in posterior territories.
|
Specimen
6B, ovl:
embryonic day 12.5
(more )
Note: ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Pax2 (assay MGI:5561119).
Specimen
6B, ovl:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
ovl = overlay. Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Pax2 (assay MGI:5561119).
|
Structure |
Level |
Pattern |
Image |
Note |
TS20: cerebellum primordium |
Present |
Regionally restricted |
6B Ngn2
,
6B ovl
|
Expression was detected in the ventricular zone. Expression was adjacent to the Pax2 domain.
|
Specimen
7E, D/E inlay, E/F inlay:
embryonic day 12.5
(more )
Note: Inlay - Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Lhx1 (D/E; assay MGI:5562373) or Lhx5 (E/F; assay MGI:5562377).
Specimen
7E, D/E inlay, E/F inlay:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 12.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
Inlay - Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Lhx1 (D/E; assay MGI:5562373) or Lhx5 (E/F; assay MGI:5562377).
|
Structure |
Level |
Pattern |
Image |
Note |
TS20: cerebellum primordium |
Present |
Regionally restricted |
7D/E inlay
,
7E
,
7E/F inlay
|
Expression was detected in the ventricular zone adjacent to Lhx1 (D/E inlay) and Lhx5 (E/F inlay) in the subventricular zone.
|
Specimen
8F, F inlay:
embryonic day 13.5
(more )
Note: Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Pax2 (assay MGI:5561119).
Specimen
8F, F inlay:
(close )
Genetic Background:
|
Not Specified
|
Age:
|
embryonic day 13.5
|
Sex:
|
Not Specified
|
Type:
|
section
|
Fixation:
|
4% Paraformaldehyde
|
Embedding:
|
Cryosection
|
Note:
|
Adjacent sections were pseudocolored and superimposed. Colors: green - Neurog2; red - Pax2 (assay MGI:5561119).
|
Structure |
Level |
Pattern |
Image |
Note |
TS21: cerebellum ventricular layer |
Weak |
|
8F inlay
,
8F
|
Expression was detected in the ventricular zone but was considerably down-regulated. The anterior boundary of expression was detectable underneath the Pax2 domain in the subventricular zone.
|
|
