| Image |
|
||||

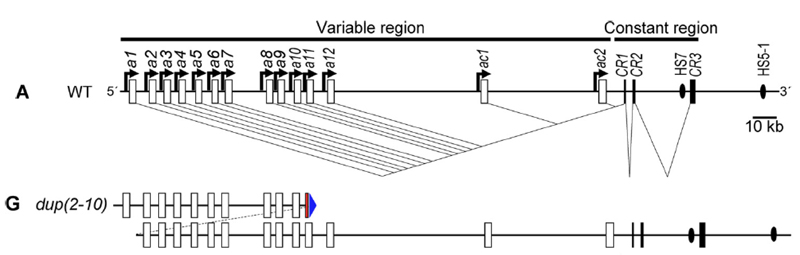

| Caption | Generation of the Pcdhatm11Tyag (dup(2-10)) allele. A, genomic structure of the Pcdha wild-type (WT) allele. It consists of 14 first exons (white boxes) in the variable region and three CR exons (CR1-CR3, black boxes) in the constant region. The first exons are termed a1-a12, ac1, and ac2, from 5' to 3'. Pcdha genes are produced by splicing each first exon to the CR exons, and termed Pcdha1-Pcdha12, Pcdhac1, and Pcdhac2. DNase I-hypersensitive sites (HS5-1 and HS7) are shown as ovals. Arrows indicate the direction of transcription. G, The dup(2-10) allele (Pcdhatm11Tyag): duplication of a2-a10. The dup(2-10) allele was produced from the G16Neo (Pcdhatm6Tyag) and 11R (Pcdhatm7.1Tyag) alleles. The duplicated segments are shown under the position of the original segment. | ||||
| Copyright | This image is from Noguchi Y, J Biol Chem 2009 Nov 13;284(46):32002-14 and is displayed with the permission of the American Society for Biochemistry and Molecular Biology who owns the Copyright. Full text from JBC. J:156323 | ||||
|
