Gene Expression Data
Assay Details
Assay
Reference: J:153498 Diez-Roux G, et al., A high-resolution anatomical atlas of the transcriptome in the mouse embryo. PLoS Biol. 2011;9(1):e1000582
Assay type: RNA in situ
MGI Accession ID: MGI:4828619
Gene symbol: Tbx1
Gene name: T-box 1
Probe: T55198
Probe preparation: Antisense labelled with digoxigenin RNA
Visualized with: Alkaline phosphatase
Assay notes: Cryosections of fresh frozen material were fixed in 4% paraformaldehyde for 20 min. before further processing. A tyramide-biotin/streptavidin amplification step was included in the in situ hybridization procedure.
Results

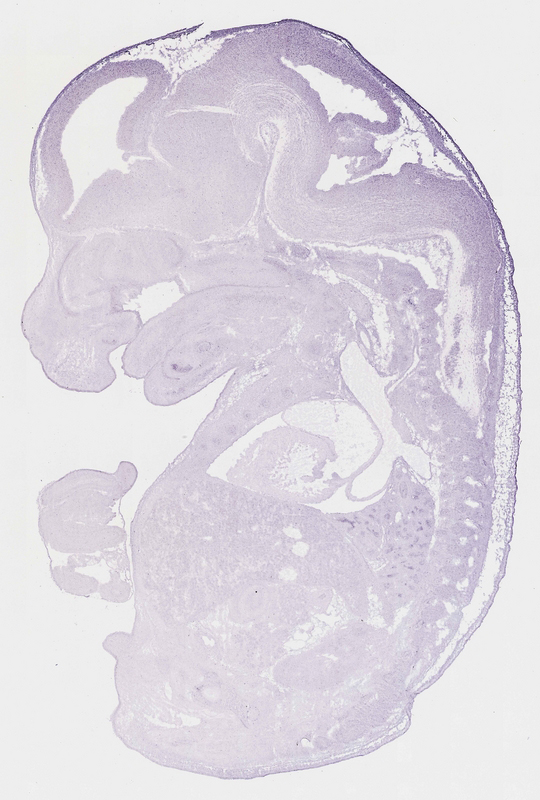

Specimen euxassay_019629_05: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Moderate Regionally restricted euxassay_019629_05
TS23: lung Weak Regionally restricted euxassay_019629_05

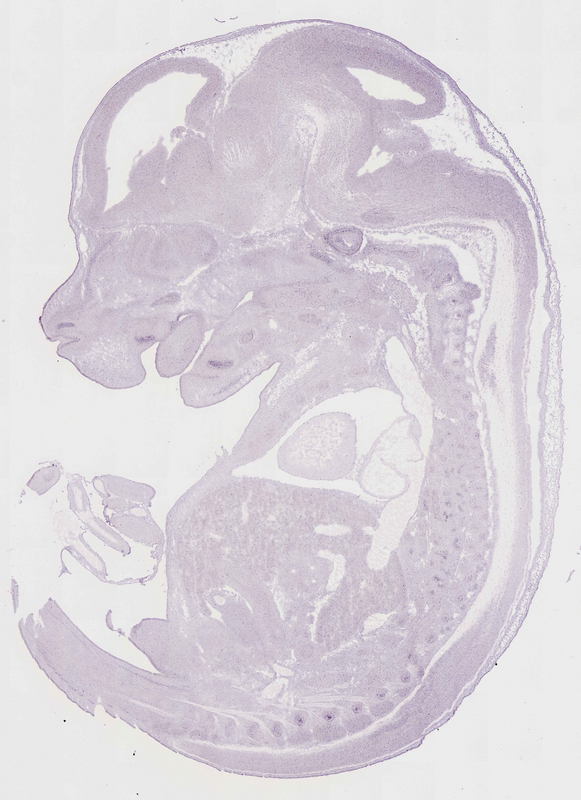

Specimen euxassay_019629_06: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Moderate Regionally restricted euxassay_019629_06
TS23: lung Weak Regionally restricted euxassay_019629_06

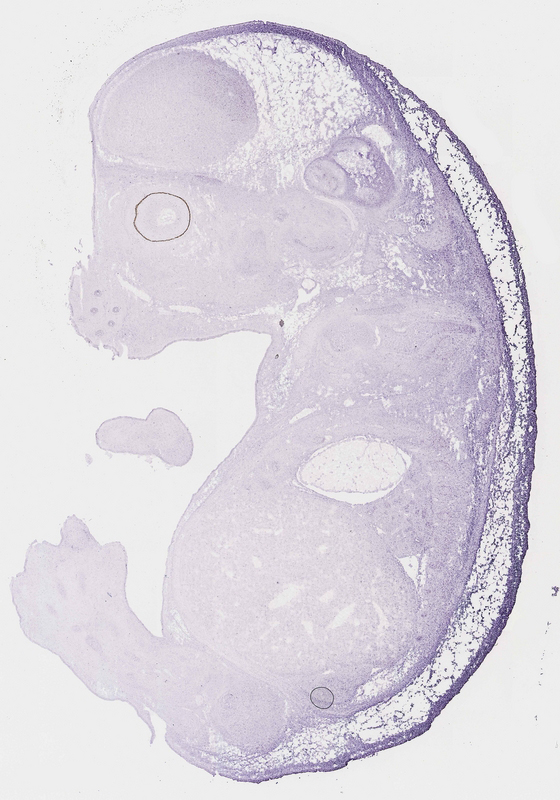

Specimen euxassay_019629_07: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Weak Regionally restricted euxassay_019629_07
TS23: upper jaw molar Moderate Regionally restricted euxassay_019629_07
TS23: lower jaw molar Weak Regionally restricted euxassay_019629_07
TS23: lung Weak Regionally restricted euxassay_019629_07

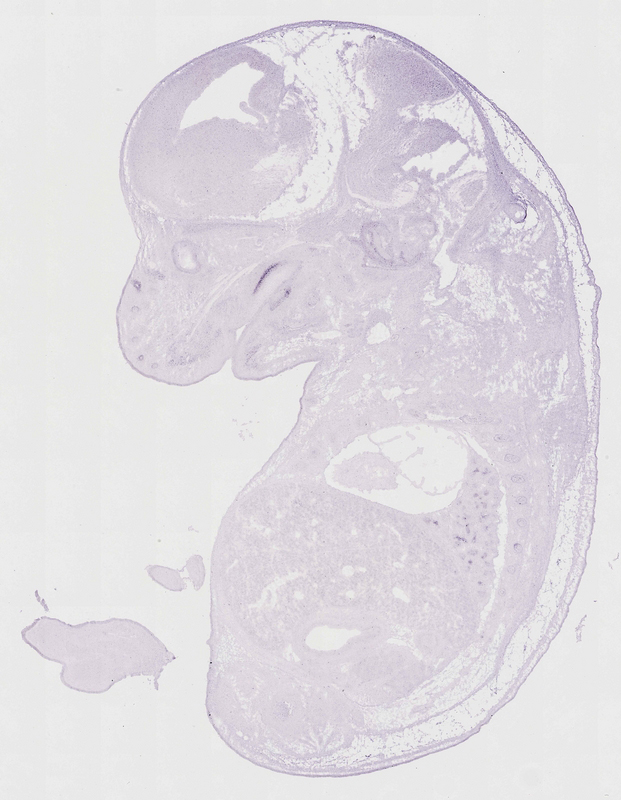

Specimen euxassay_019629_08: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Weak Regionally restricted euxassay_019629_08
TS23: lung Weak Regionally restricted euxassay_019629_08

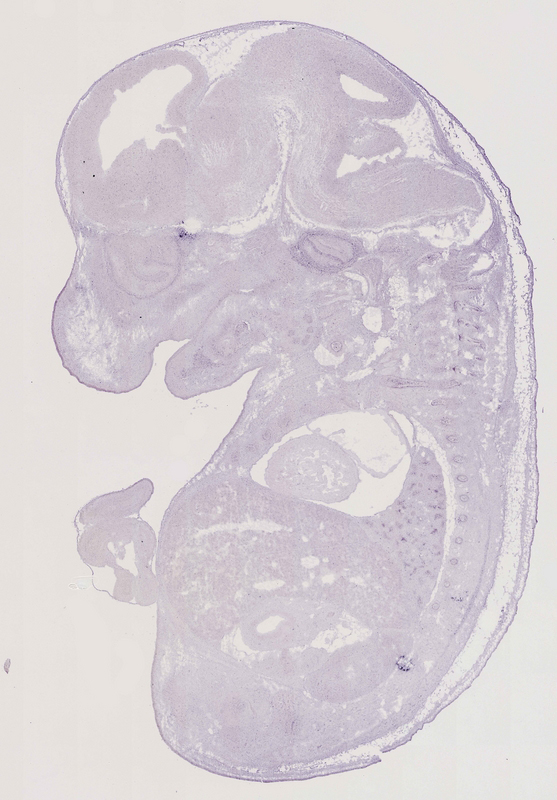

Specimen euxassay_019629_09: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: lung Weak Regionally restricted euxassay_019629_09

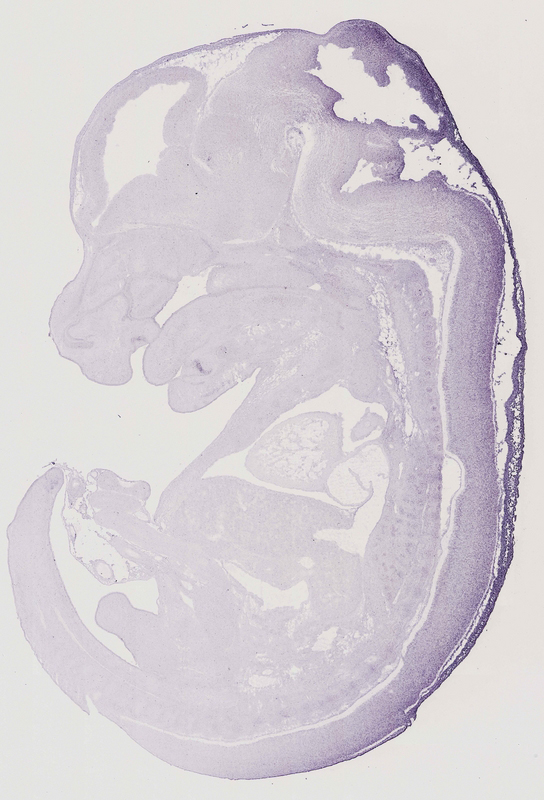

Specimen euxassay_019629_10: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: lung Weak Regionally restricted euxassay_019629_10

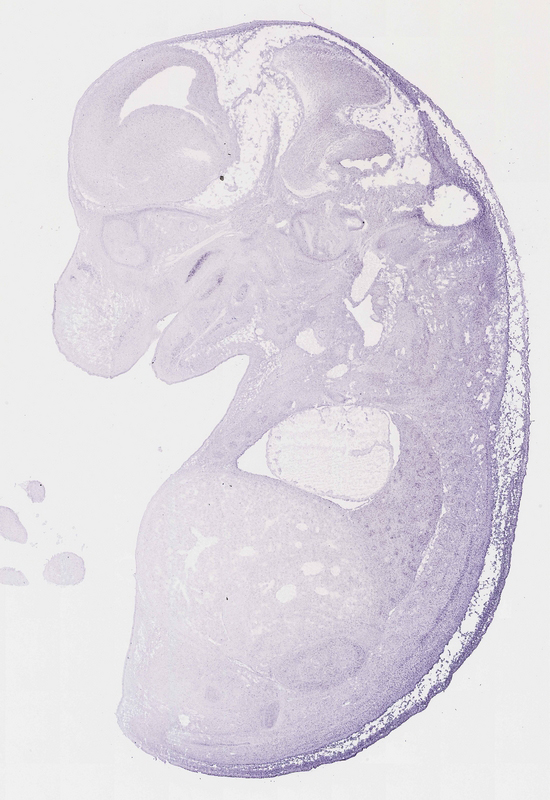

Specimen euxassay_019629_11: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: lower jaw incisor Weak Regionally restricted euxassay_019629_11
TS23: lung Weak Regionally restricted euxassay_019629_11

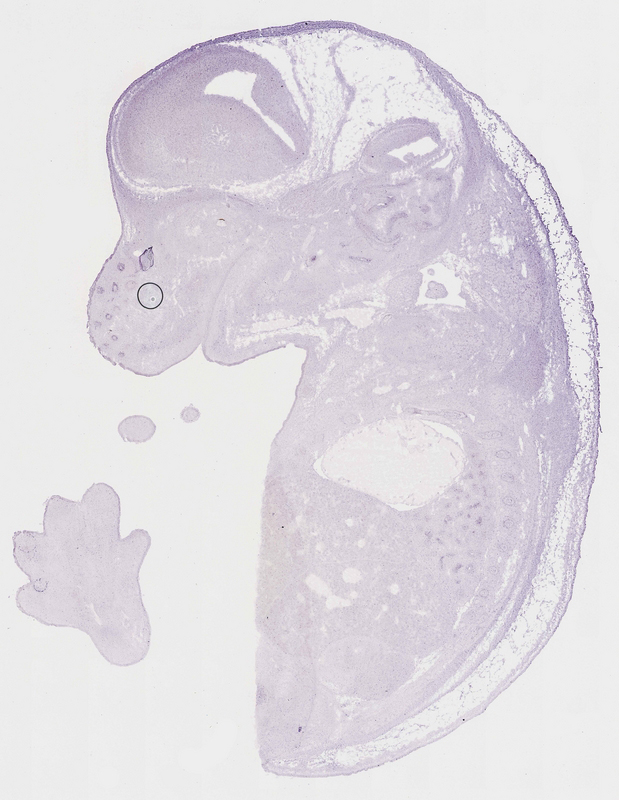

Specimen euxassay_019629_15: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: lung Weak Regionally restricted euxassay_019629_15
Specimen euxassay_019629_16: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: upper jaw incisor Weak Regionally restricted euxassay_019629_16
TS23: lower jaw incisor Weak Regionally restricted euxassay_019629_16
Specimen euxassay_019629_17: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: upper jaw incisor Weak Regionally restricted euxassay_019629_17
TS23: lower jaw incisor Weak Regionally restricted euxassay_019629_17
TS23: lung Weak Regionally restricted euxassay_019629_17
Specimen euxassay_019629_18: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: lung Weak Regionally restricted euxassay_019629_18
Specimen euxassay_019629_19: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: lung Weak Regionally restricted euxassay_019629_19
Specimen euxassay_019629_20: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: upper jaw molar Weak Regionally restricted euxassay_019629_20
TS23: lower jaw molar Weak Regionally restricted euxassay_019629_20
Specimen euxassay_019629_21: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Weak Regionally restricted euxassay_019629_21
TS23: lung Weak Regionally restricted euxassay_019629_21
Specimen euxassay_019629_22: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Weak Regionally restricted euxassay_019629_22
TS23: lung Weak Regionally restricted euxassay_019629_22
Specimen euxassay_019629_23: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Weak Regionally restricted euxassay_019629_23
TS23: lung Weak Regionally restricted euxassay_019629_23
Specimen euxassay_019629_24: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: vibrissa Weak Regionally restricted euxassay_019629_24
