Gene Expression Data
Assay Details
Assay
Reference: J:153498 Diez-Roux G, et al., A high-resolution anatomical atlas of the transcriptome in the mouse embryo. PLoS Biol. 2011;9(1):e1000582
Assay type: RNA in situ
MGI Accession ID: MGI:4827626
Gene symbol: Rasgef1b
Gene name: RasGEF domain family, member 1B
Probe: IMAGE clone 2631273
Probe preparation: Antisense labelled with digoxigenin RNA
Visualized with: Alkaline phosphatase
Assay notes: Cryosections of fresh frozen material were fixed in 4% paraformaldehyde for 20 min. before further processing. A tyramide-biotin/streptavidin amplification step was included in the in situ hybridization procedure.
Results

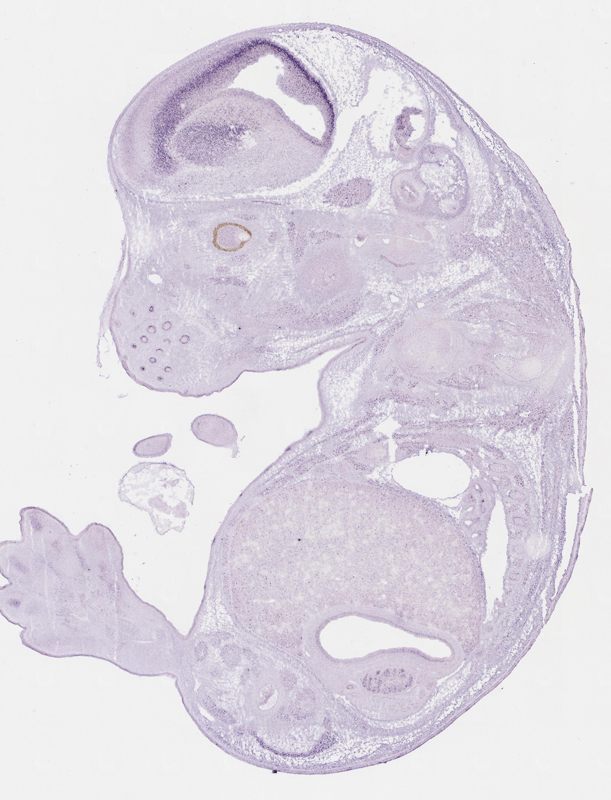

Specimen euxassay_000486_01: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_01

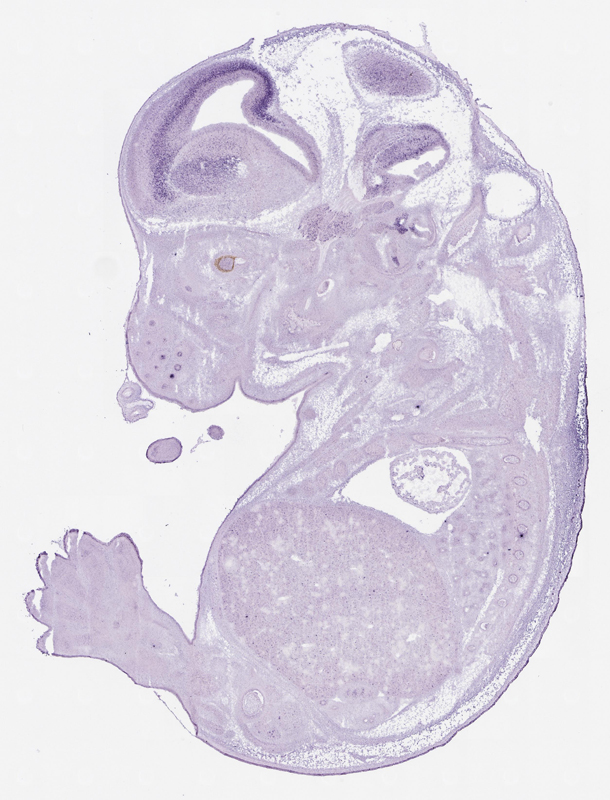

Specimen euxassay_000486_02: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_02

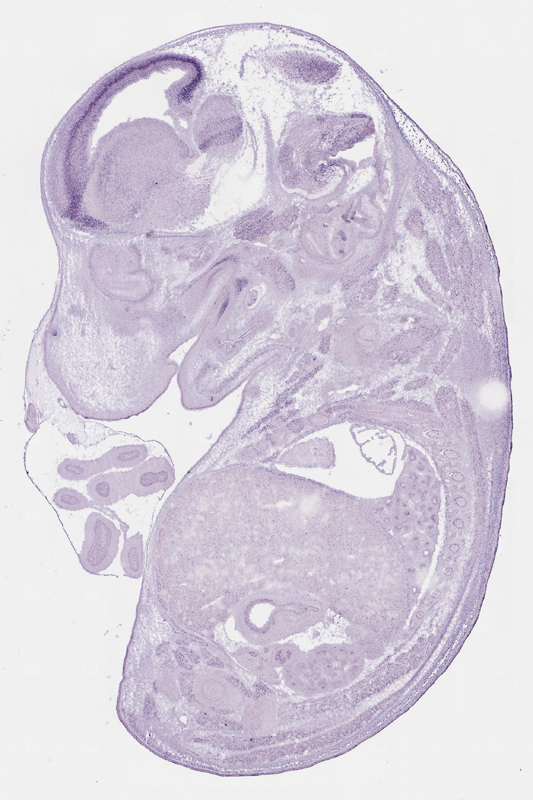

Specimen euxassay_000486_03: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_03
TS23: vibrissa Weak Regionally restricted euxassay_000486_03

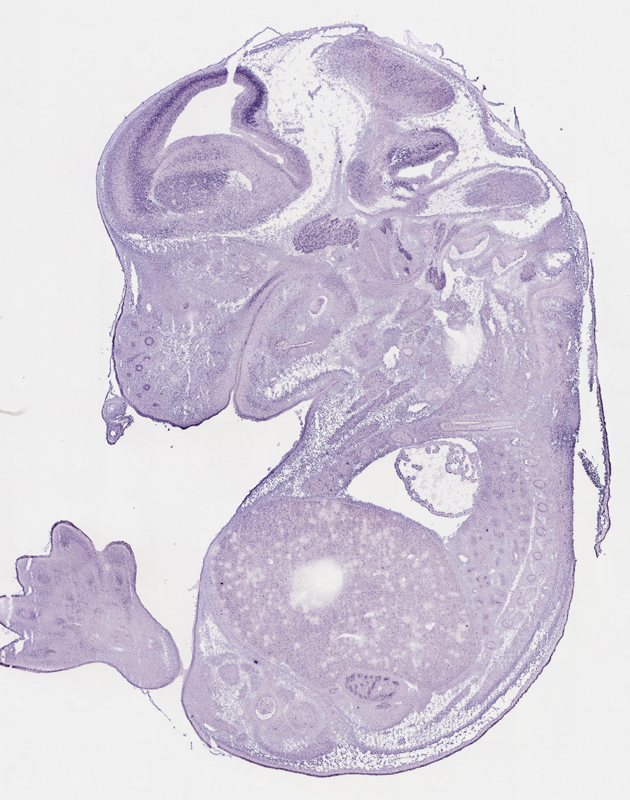

Specimen euxassay_000486_04: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_04
TS23: vibrissa Weak Regionally restricted euxassay_000486_04

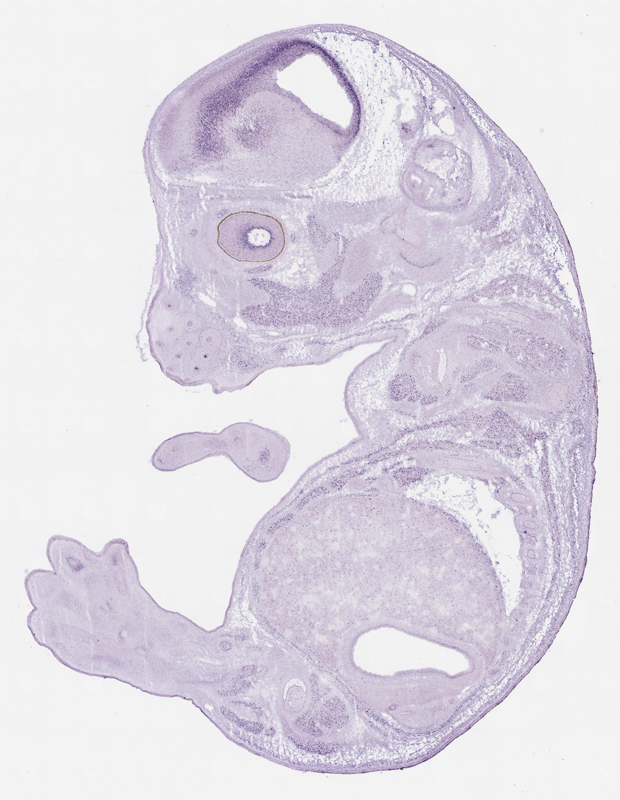

Specimen euxassay_000486_05: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_05
TS23: vibrissa Weak Regionally restricted euxassay_000486_05

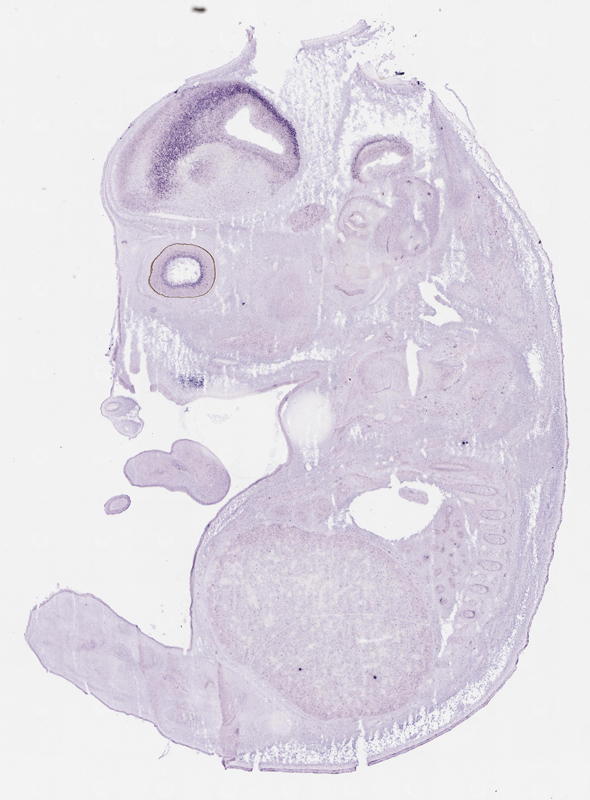

Specimen euxassay_000486_06: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_06
TS23: vestibulo-cochlear ganglion Weak Regionally restricted euxassay_000486_06
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_06 zona incerta

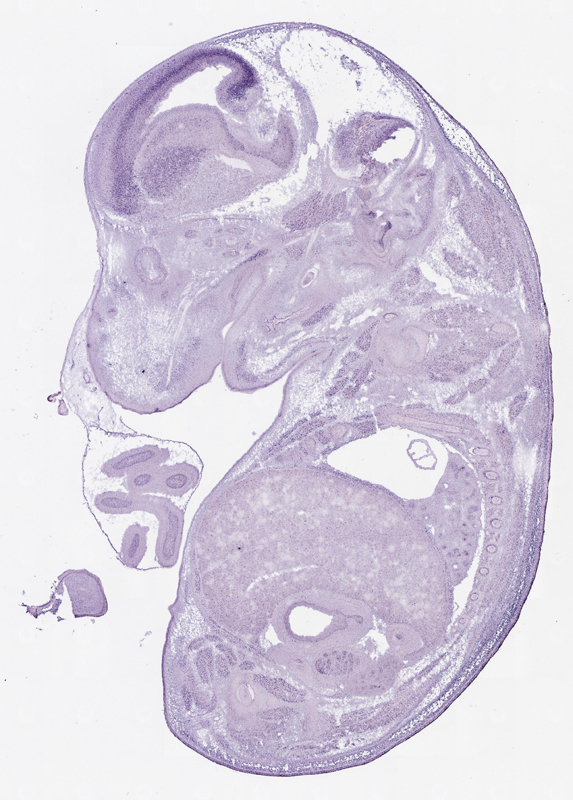

Specimen euxassay_000486_07: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_07
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_07
TS23: vestibulo-cochlear ganglion Weak Regionally restricted euxassay_000486_07
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_07 zona incerta

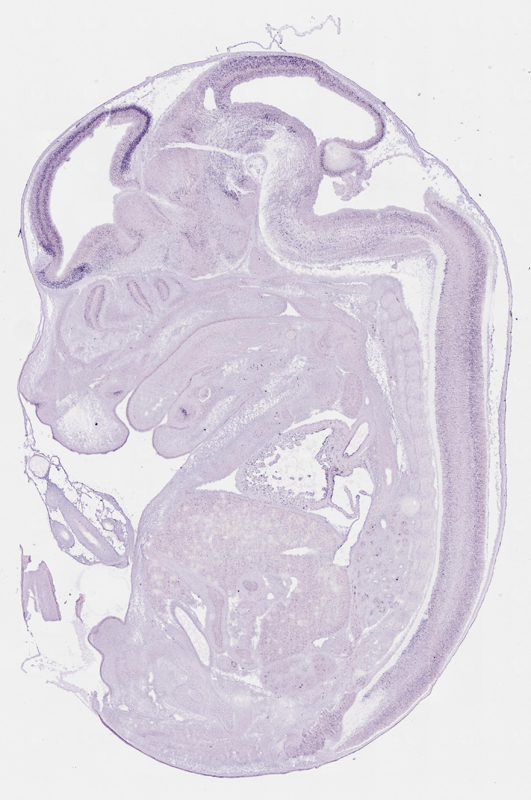

Specimen euxassay_000486_08: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_08
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_08
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_08
Specimen euxassay_000486_09: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_09
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_09
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_09
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_09
Specimen euxassay_000486_10: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_10
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_10
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_10
Specimen euxassay_000486_11: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_11
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_11
TS23: medulla oblongata basal plate Weak Uniform euxassay_000486_11
TS23: hypothalamus mantle layer Moderate Regionally restricted euxassay_000486_11
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_11 basal plate of diencephalon
Specimen euxassay_000486_12: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_12
TS23: hypothalamus mantle layer Moderate Regionally restricted euxassay_000486_12
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_12 basal plate of diencephalon
Specimen euxassay_000486_13: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: midbrain mantle layer Moderate Regionally restricted euxassay_000486_13
TS23: hypothalamus mantle layer Moderate Regionally restricted euxassay_000486_13
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_13 basal plate of diencephalon
Specimen euxassay_000486_14: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_14
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_14
TS23: midbrain mantle layer Moderate Regionally restricted euxassay_000486_14
TS23: medulla oblongata basal plate Weak Uniform euxassay_000486_14
TS23: hypothalamus mantle layer Moderate Regionally restricted euxassay_000486_14
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_14 basal plate of diencephalon
Specimen euxassay_000486_15: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_15
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_15
TS23: midbrain mantle layer Moderate Regionally restricted euxassay_000486_15
TS23: hypothalamus mantle layer Moderate Regionally restricted euxassay_000486_15
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_15 basal plate of diencephalon
Specimen euxassay_000486_16: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Moderate Uniform euxassay_000486_16
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_16
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_16
TS23: midbrain mantle layer Moderate Regionally restricted euxassay_000486_16
Specimen euxassay_000486_17: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_17
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_17
TS23: midbrain mantle layer Moderate Regionally restricted euxassay_000486_17
Specimen euxassay_000486_18: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_18
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_18
TS23: midbrain mantle layer Moderate Regionally restricted euxassay_000486_18
TS23: vibrissa Weak Regionally restricted euxassay_000486_18
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_18
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_18 zona incerta
Specimen euxassay_000486_19: embryonic day 14.5 (more )
Note: Additional information for this specimen was included in the Eurexpress data submission file.
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_19
TS23: midbrain ventricular layer Moderate Regionally restricted euxassay_000486_19
TS23: vibrissa Weak Regionally restricted euxassay_000486_19
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_19
TS23: diencephalon lateral wall mantle layer Weak Regionally restricted euxassay_000486_19 zona incerta
Specimen euxassay_000486_20: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_20
TS23: vibrissa Weak Regionally restricted euxassay_000486_20
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_20
Specimen euxassay_000486_21: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_21
TS23: vibrissa Weak Regionally restricted euxassay_000486_21
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_21
Specimen euxassay_000486_22: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_22
TS23: vibrissa Weak Regionally restricted euxassay_000486_22
TS23: vestibulo-cochlear ganglion Moderate Regionally restricted euxassay_000486_22
Specimen euxassay_000486_23: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_23
Specimen euxassay_000486_24: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: cerebral cortex mantle layer Moderate Uniform euxassay_000486_24
