Gene Expression Data
Assay Details
Assay
Reference: J:153498 Diez-Roux G, et al., A high-resolution anatomical atlas of the transcriptome in the mouse embryo. PLoS Biol. 2011;9(1):e1000582
Assay type: RNA in situ
MGI Accession ID: MGI:4825989
Gene symbol: Carmil1
Gene name: capping protein regulator and myosin 1 linker 1
Probe: T30881
Probe preparation: Antisense labelled with digoxigenin RNA
Visualized with: Alkaline phosphatase
Assay notes: Cryosections of fresh frozen material were fixed in 4% paraformaldehyde for 20 min. before further processing. A tyramide-biotin/streptavidin amplification step was included in the in situ hybridization procedure.
Results

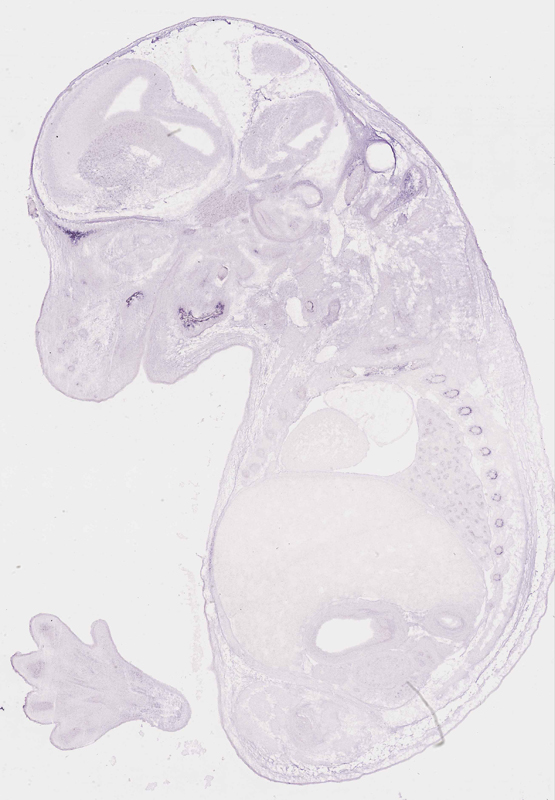

Specimen euxassay_009829_01: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_01
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_01
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_01

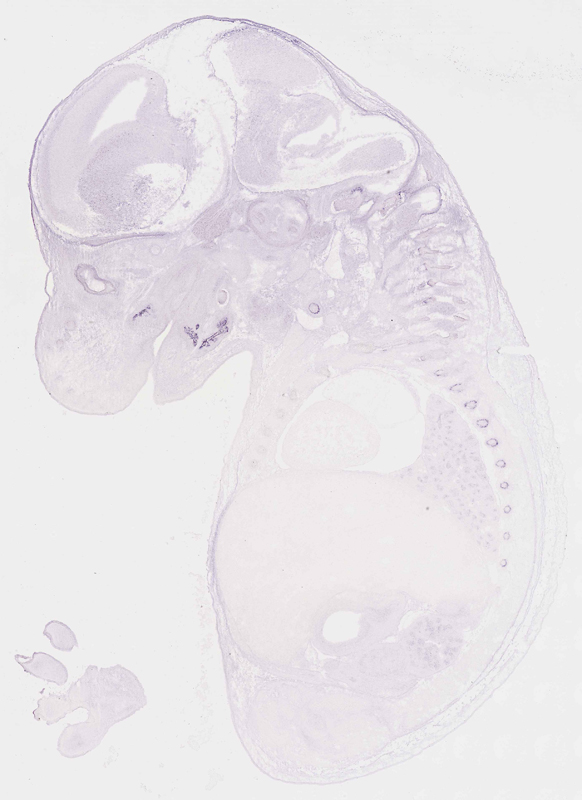

Specimen euxassay_009829_02: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Weak Regionally restricted euxassay_009829_02
TS23: mandible Strong Regionally restricted euxassay_009829_02
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_02
TS23: femur Weak Regionally restricted euxassay_009829_02
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_02

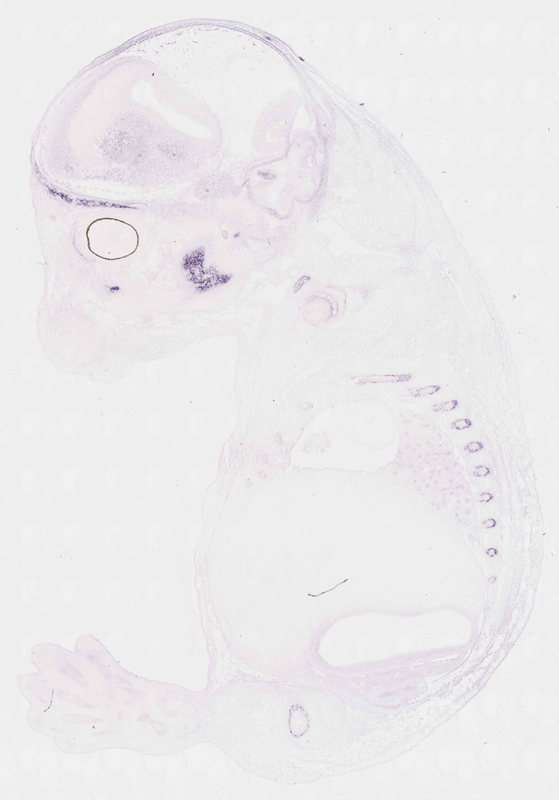

Specimen euxassay_009829_03: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_03
TS23: mandible Strong Regionally restricted euxassay_009829_03
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_03
TS23: femur Weak Regionally restricted euxassay_009829_03
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_03

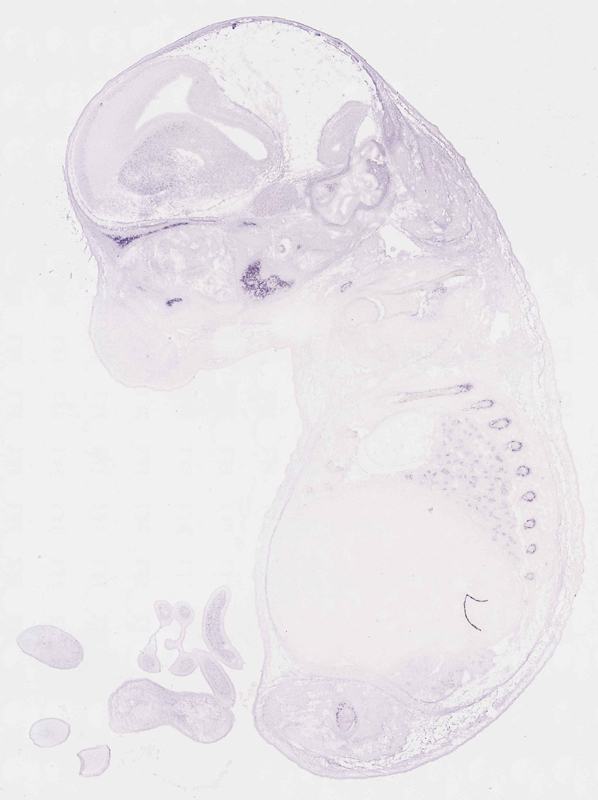

Specimen euxassay_009829_04: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_04
TS23: maxilla Strong Regionally restricted euxassay_009829_04
TS23: mandible Strong Regionally restricted euxassay_009829_04
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_04
TS23: femur Weak Regionally restricted euxassay_009829_04
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_04
TS23: vibrissa Weak Regionally restricted euxassay_009829_04

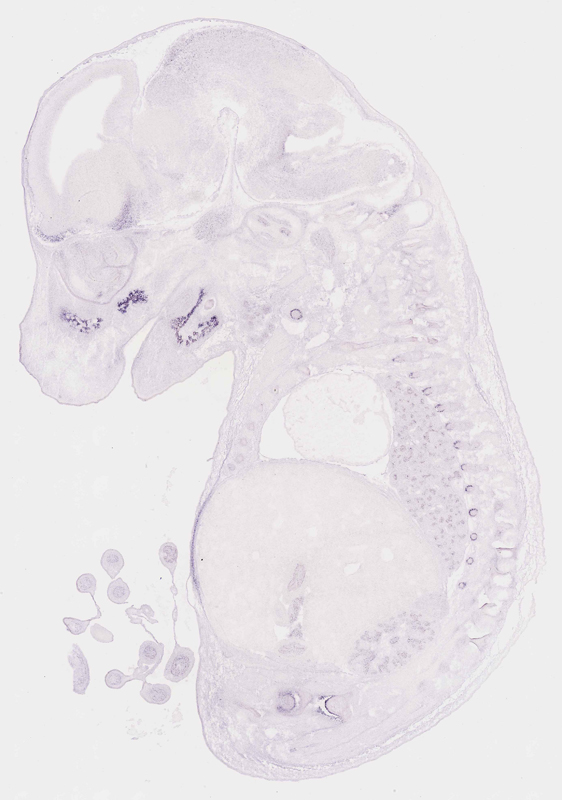

Specimen euxassay_009829_05: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Weak Regionally restricted euxassay_009829_05
TS23: maxilla Strong Regionally restricted euxassay_009829_05
TS23: mandible Strong Regionally restricted euxassay_009829_05
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_05
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_05

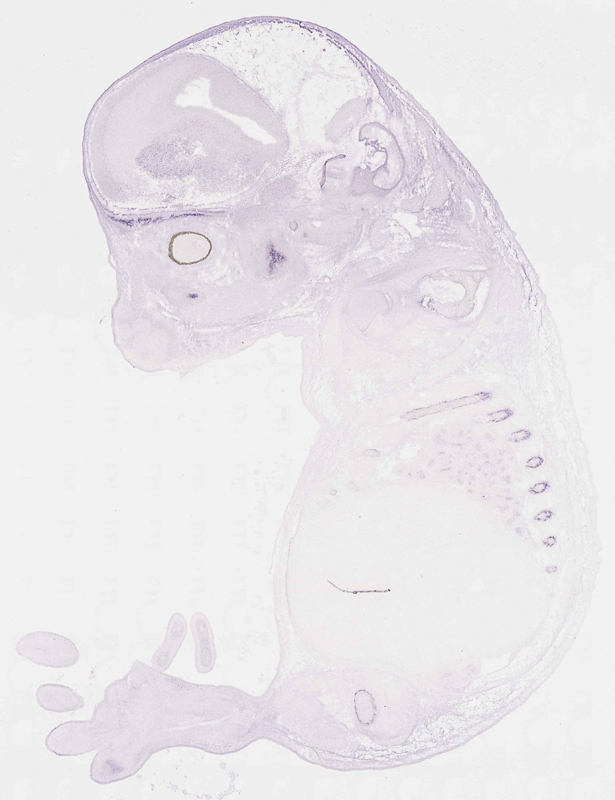

Specimen euxassay_009829_06: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Weak Regionally restricted euxassay_009829_06
TS23: maxilla Strong Regionally restricted euxassay_009829_06
TS23: mandible Strong Regionally restricted euxassay_009829_06
TS23: clavicle Weak Regionally restricted euxassay_009829_06
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_06

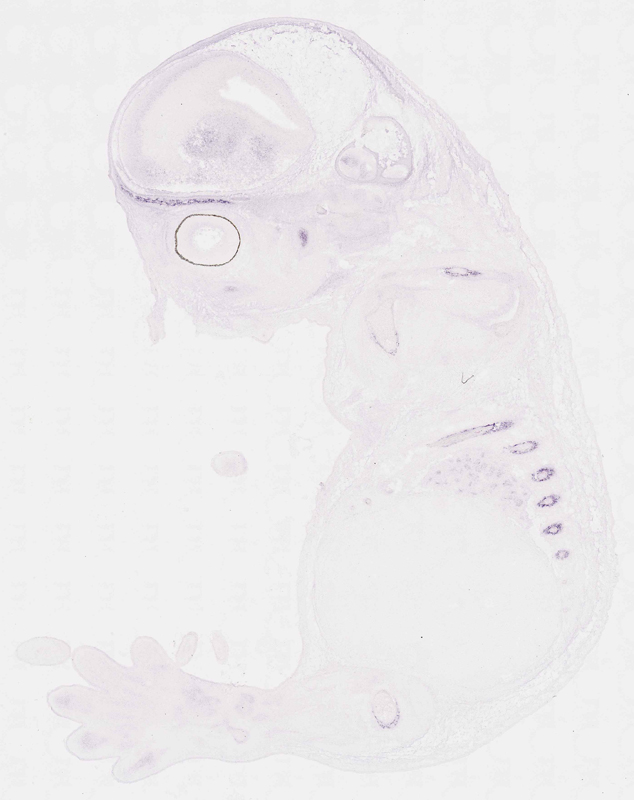

Specimen euxassay_009829_07: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: maxilla Strong Regionally restricted euxassay_009829_07
TS23: mandible Strong Regionally restricted euxassay_009829_07
TS23: clavicle Weak Regionally restricted euxassay_009829_07
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_07

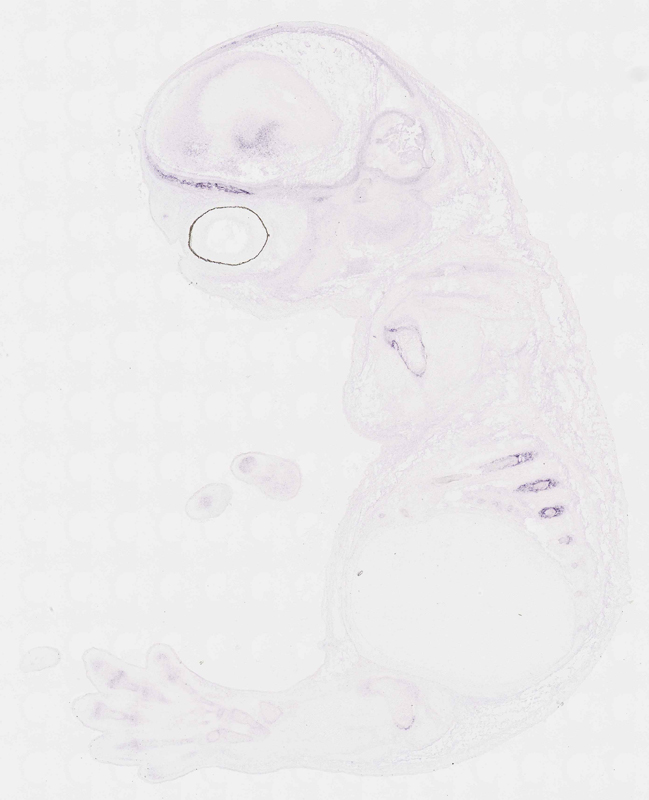

Specimen euxassay_009829_08: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: mandible Strong Regionally restricted euxassay_009829_08
TS23: palatal shelf Strong Regionally restricted euxassay_009829_08
TS23: maxilla Strong Regionally restricted euxassay_009829_08
TS23: clavicle Weak Regionally restricted euxassay_009829_08
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_08
Specimen euxassay_009829_09: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: maxilla Strong Regionally restricted euxassay_009829_09
TS23: lower jaw skeleton Strong Regionally restricted euxassay_009829_09
TS23: mandible Strong Regionally restricted euxassay_009829_09
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_09
TS23: olfactory cortex marginal layer Weak Regionally restricted euxassay_009829_09
Specimen euxassay_009829_10: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Weak Regionally restricted euxassay_009829_10
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_10
Specimen euxassay_009829_11: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: olfactory cortex marginal layer Weak Regionally restricted euxassay_009829_11
Specimen euxassay_009829_13: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: maxilla Strong Regionally restricted euxassay_009829_13
TS23: mandible Strong Regionally restricted euxassay_009829_13
Specimen euxassay_009829_14: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: maxilla Strong Regionally restricted euxassay_009829_14
TS23: palatal shelf Strong Regionally restricted euxassay_009829_14
TS23: mandible Strong Regionally restricted euxassay_009829_14
TS23: clavicle Weak Regionally restricted euxassay_009829_14
TS23: olfactory cortex marginal layer Weak Regionally restricted euxassay_009829_14
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_14
Specimen euxassay_009829_15: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: maxilla Strong Regionally restricted euxassay_009829_15
TS23: mandible Strong Regionally restricted euxassay_009829_15
TS23: palatal shelf Strong Regionally restricted euxassay_009829_15
TS23: clavicle Weak Regionally restricted euxassay_009829_15
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_15
TS23: olfactory cortex marginal layer Weak Regionally restricted euxassay_009829_15
Specimen euxassay_009829_16: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Weak Regionally restricted euxassay_009829_16
TS23: maxilla Strong Regionally restricted euxassay_009829_16
TS23: mandible Strong Regionally restricted euxassay_009829_16
TS23: palatal shelf Strong Regionally restricted euxassay_009829_16
TS23: clavicle Weak Regionally restricted euxassay_009829_16
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_16
TS23: olfactory cortex marginal layer Weak Regionally restricted euxassay_009829_16
Specimen euxassay_009829_17: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_17
TS23: maxilla Strong Regionally restricted euxassay_009829_17
TS23: mandible Strong Regionally restricted euxassay_009829_17
TS23: clavicle Weak Regionally restricted euxassay_009829_17
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_17
TS23: vibrissa Weak Regionally restricted euxassay_009829_17
Specimen euxassay_009829_18: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_18
TS23: maxilla Strong Regionally restricted euxassay_009829_18
TS23: mandible Strong Regionally restricted euxassay_009829_18
TS23: clavicle Weak Regionally restricted euxassay_009829_18
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_18
TS23: vibrissa Weak Regionally restricted euxassay_009829_18
Specimen euxassay_009829_19: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_19
TS23: mandible Strong Regionally restricted euxassay_009829_19
TS23: maxilla Strong Regionally restricted euxassay_009829_19
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_19
TS23: vibrissa Weak Regionally restricted euxassay_009829_19
Specimen euxassay_009829_20: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_20
TS23: mandible Strong Regionally restricted euxassay_009829_20
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_20
TS23: femur Weak Regionally restricted euxassay_009829_20
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_20
Specimen euxassay_009829_21: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_21
TS23: mandible Strong Regionally restricted euxassay_009829_21
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_21
TS23: femur Weak Regionally restricted euxassay_009829_21
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_21
Specimen euxassay_009829_22: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_22
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_22
TS23: femur Weak Regionally restricted euxassay_009829_22
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_22
Specimen euxassay_009829_23: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS23: rib Moderate Regionally restricted euxassay_009829_23
TS23: orbito-sphenoid Strong Regionally restricted euxassay_009829_23
TS23: telencephalon mantle layer Weak Regionally restricted euxassay_009829_23
