Table pub.mgd.voc_annottype
A record in this table defines an Annotation Type. Each Annotation instance specifies its type (VOC_Annot). An Annotation Type specifies an Object type (_MGIType_key), the Vocabulary to which an Object of that type is being annotated (_Vocab_key), and the Evidence Vocabulary (_EvidenceVocab_key) used to annotate the Object of the specified type. An Object which is to be annotated (a Marker or a Genotype) is an accessionable object which requires an entry in ACC_MGIType.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_annottype_key int4 10
all_allele_subtype_view._annottype_key Implied Constraint R
all_annot_view._annottype_key Implied Constraint R
prb_strain_needsreview_view._annottype_key Implied Constraint R
voc_annot._annottype_key voc_annot__annottype_key_fkey R
voc_annot_view._annottype_key Implied Constraint R
voc_annotheader._annottype_key voc_annotheader__annottype_key_fkey R
voc_annotheader_view._annottype_key Implied Constraint R
primary key
_mgitype_key int4 10
acc_mgitype._mgitype_key voc_annottype__mgitype_key_fkey R
foreign key to ACC_MGIType
_vocab_key int4 10
voc_vocab._vocab_key voc_annottype__vocab_key_fkey C
foreign key to VOC_Vocab
_evidencevocab_key int4 10
voc_vocab._vocab_key voc_annottype__evidencevocab_key_fkey R
foreign key to VOC_Term; examples include 3:GO Evidence Codes, 2:Mammalian Phenotype Evidence, 80:MCV Evidence Codes Codes
_qualifiervocab_key int4 10
voc_vocab._vocab_key voc_annottype__qualifiervocab_key_fkey R
foreign key to VOC_Term; examples include 52:GO Qualifier, 54:MP Qualifier
name text 2147483647 annotation type name
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 17 rows at Mon Nov 20 05:26 EST 2017

Indexes:
Column(s) Type Sort Constraint Name
_annottype_key Primary key Asc voc_annottype_pkey
lower(name) Performance Asc voc_annottype_0
_evidencevocab_key Performance Asc voc_annottype_idx_evidencevocab_key
_mgitype_key + _vocab_key + _evidencevocab_key Performance Asc/Asc/Asc voc_annottype_idx_mgitypevocabevidence
name Performance Asc voc_annottype_idx_name
_qualifiervocab_key Performance Asc voc_annottype_idx_qualifiervocab_key
_vocab_key Performance Asc voc_annottype_idx_vocab_key

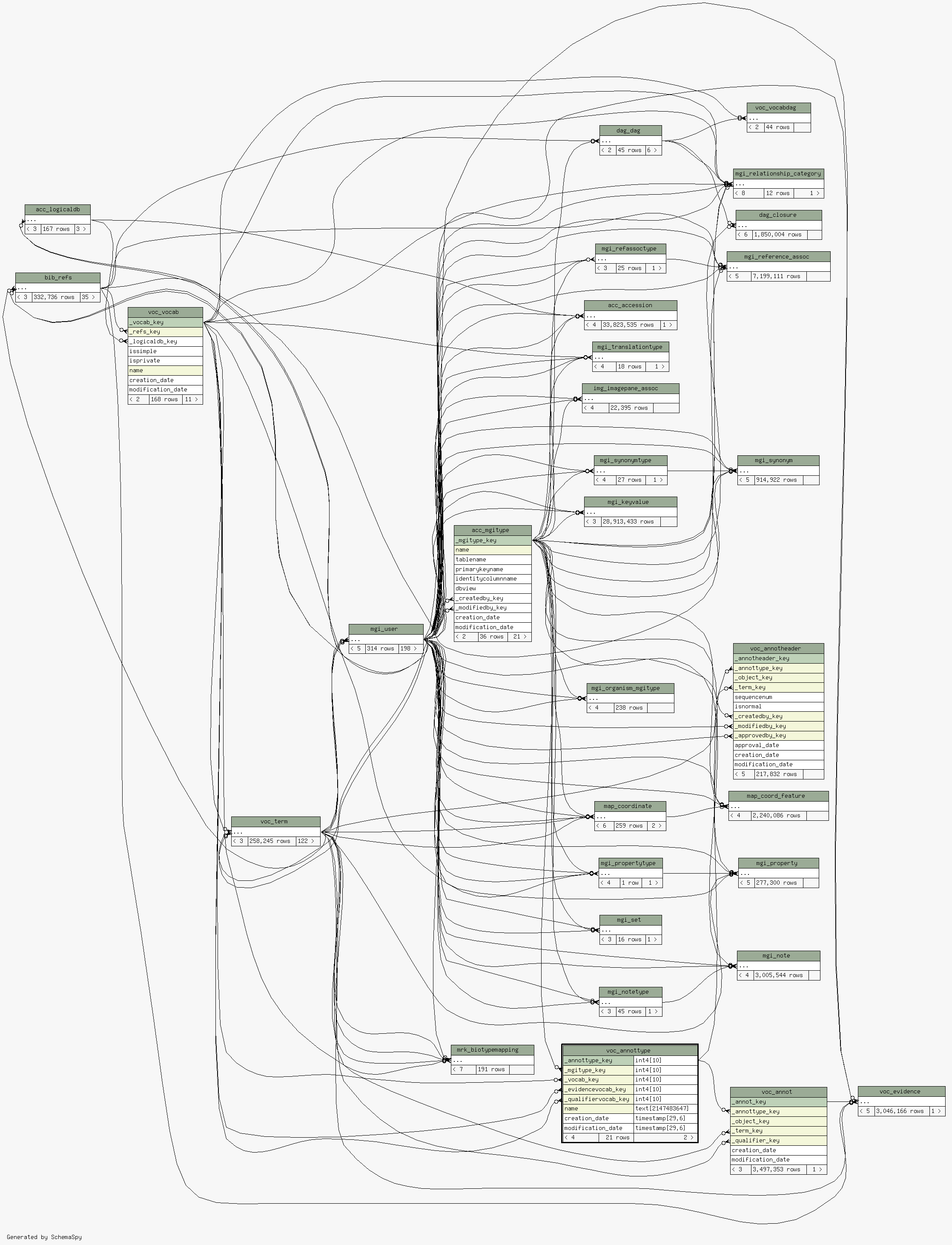

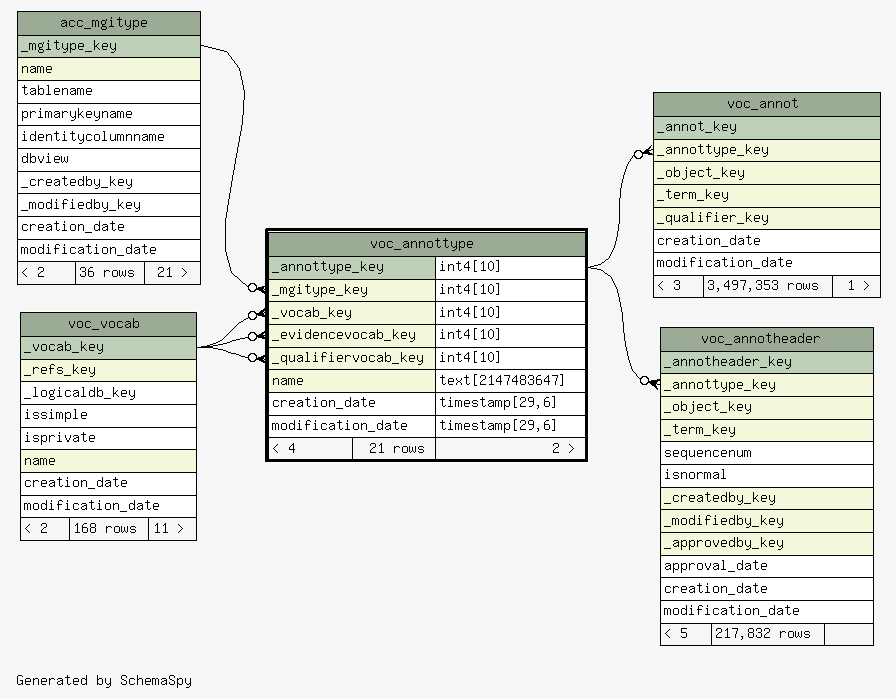

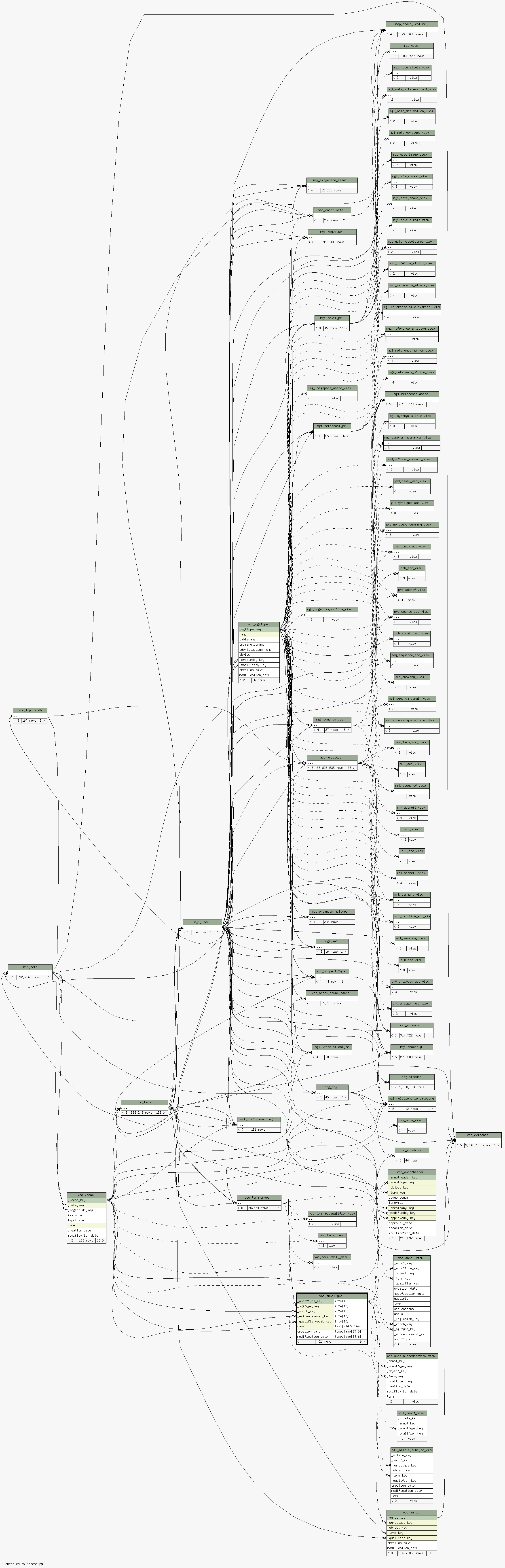

Close relationships  within of separation:
