Table pub.mgd.mrk_do_cache
A record in this table represents the cached value of a mouse genotype/DO annotation or a human marker/DO annotation. See mrkcacheload/mrkdo.csh.

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_cache_key int4 10
seq_marker_cache._cache_key Implied Constraint R
primary key
_organism_key int4 10
mgi_organism._organism_key mrk_do_cache__organism_key_fkey R
foreign key to MGI_Organism
_marker_key int4 10
mrk_marker._marker_key mrk_do_cache__marker_key_fkey C
foreign key to MRK_Marker
_genotype_key int4 10
gxd_genotype._genotype_key mrk_do_cache__genotype_key_fkey C
foreign key to GXD_Genotype
_term_key int4 10
voc_term._term_key mrk_do_cache__term_key_fkey C
foreign key to VOC_Term where _Vocab_key = 44 (DO)
_refs_key int4 10
bib_refs._refs_key mrk_do_cache__refs_key_fkey C
foreign key to BIB_Refs; reference for DO annotation
omimcategory3 int4 10 disease mouse model format
qualifier text 2147483647  √  null DO qualifier
term text 2147483647 DO term
termid text 2147483647 DO term ID
jnumid text 2147483647 J: id of Annotation reference
header text 2147483647 genotype header for WI
headerfootnote text 2147483647  √  null genotype header footnote for WI
genotypefootnote text 2147483647  √  null genotype footnote for WI
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 12,521 rows at Mon Sep 11 06:12 EDT 2023

Indexes:
Column(s) Type Sort Constraint Name
_cache_key Primary key, Used to cluster data Asc mrk_do_cache_pkey
_term_key + _marker_key Performance Asc/Asc mrk_do_cache_idx_clustered
_genotype_key Performance Asc mrk_do_cache_idx_genotype_key
_marker_key Performance Asc mrk_do_cache_idx_marker_key
_organism_key Performance Asc mrk_do_cache_idx_organism_key
_refs_key Performance Asc mrk_do_cache_idx_refs_key
_term_key Performance Asc mrk_do_cache_idx_term_key

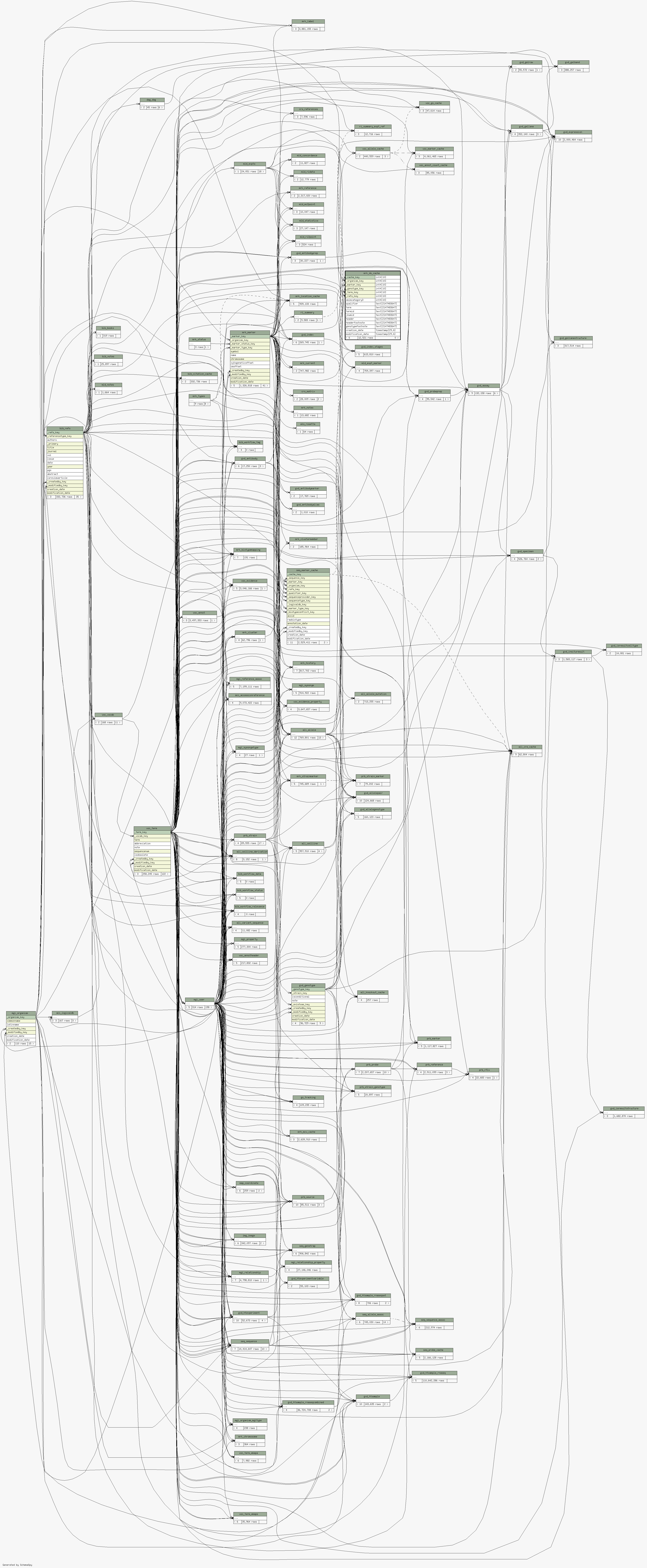

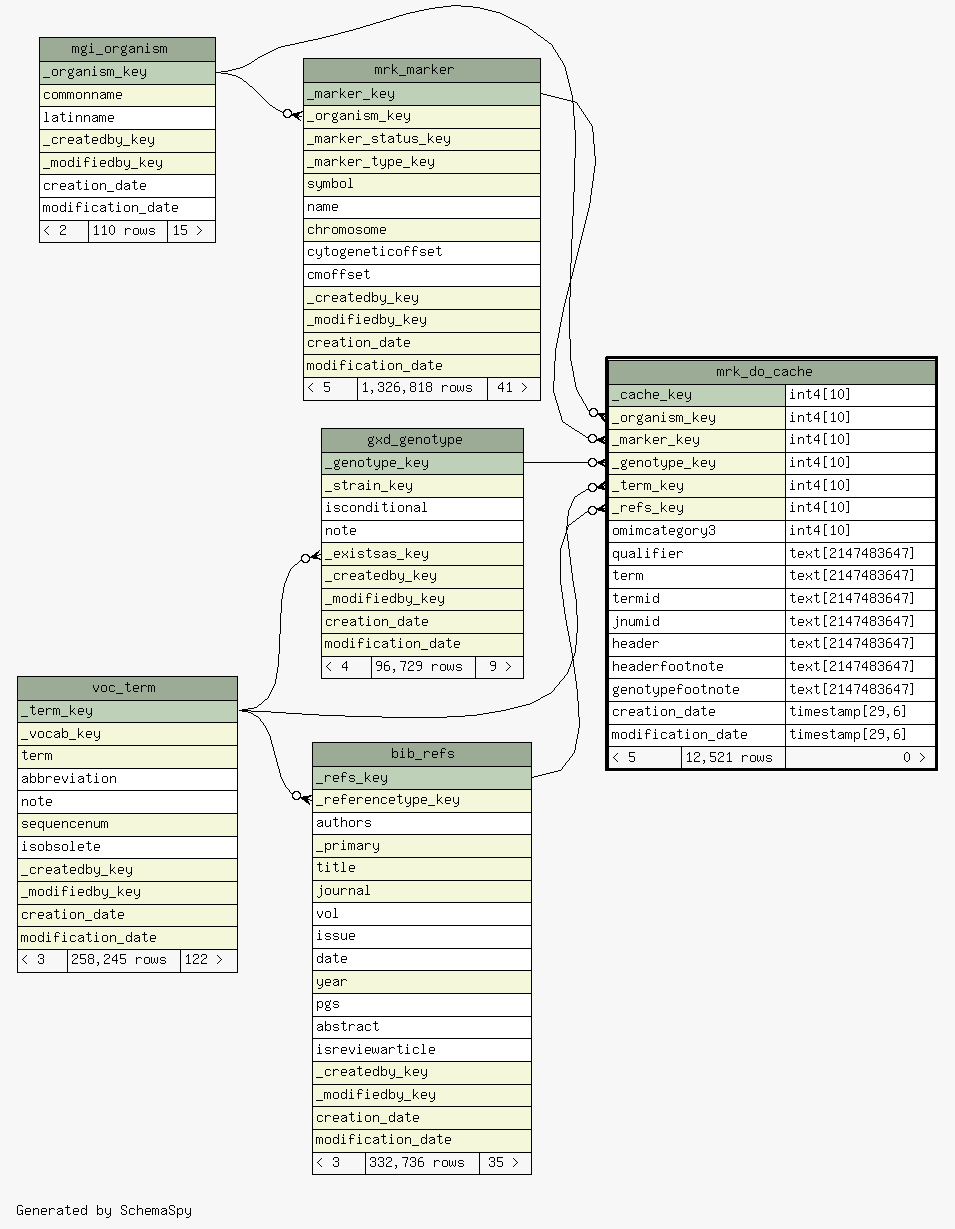

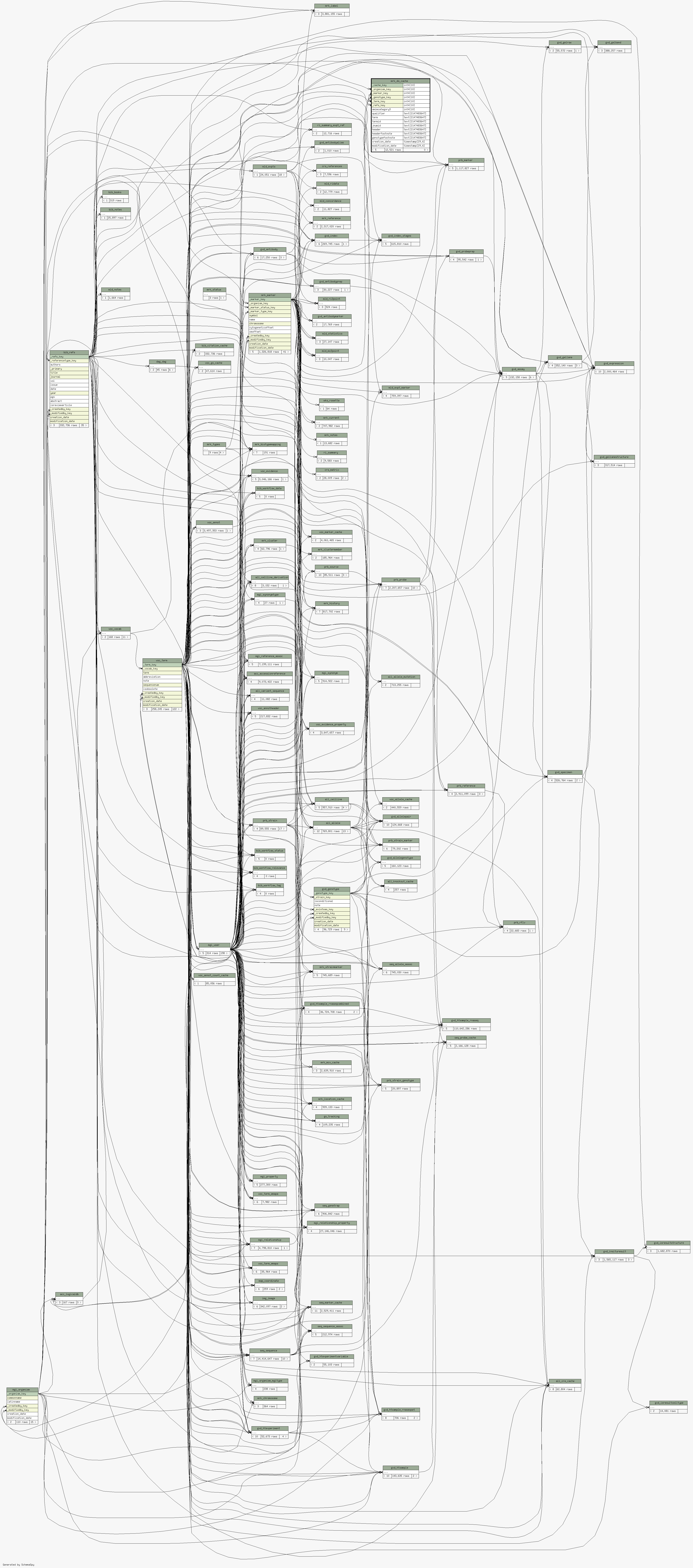

Close relationships  within of separation:
