Table pub.mgd.mld_hit
Defines hits between Probes and Targets for MIT Physical Mapping data. Each Probe and each Target is a Molecular Segment in PRB_Probe. Each hit is associated with an Experiment. In the case of MIT data, each _Probe_key points to an STS,
and each _Target_key points to a YAC.

Detail of MLD_Expts, PRB_Probe.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_expt_key int4 10
mld_expts._expt_key mld_hit__expt_key_fkey C
foreign key to MLD_Expts
_probe_key int4 10
prb_probe._probe_key mld_hit__probe_key_fkey R
foreign key to PRB_Probe
_target_key int4 10
prb_probe._probe_key mld_hit__target_key_fkey R
foreign key to PRB_Probe (Target (YAC))
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 50,872 rows at Mon Nov 20 05:26 EST 2017

Indexes:
Column(s) Type Sort Constraint Name
_expt_key + _probe_key + _target_key Primary key, Used to cluster data Asc/Asc/Asc mld_hit_pkey
_target_key Performance Asc mld_hit_idx_probe_key
_probe_key Performance Asc mld_hit_idx_target_key

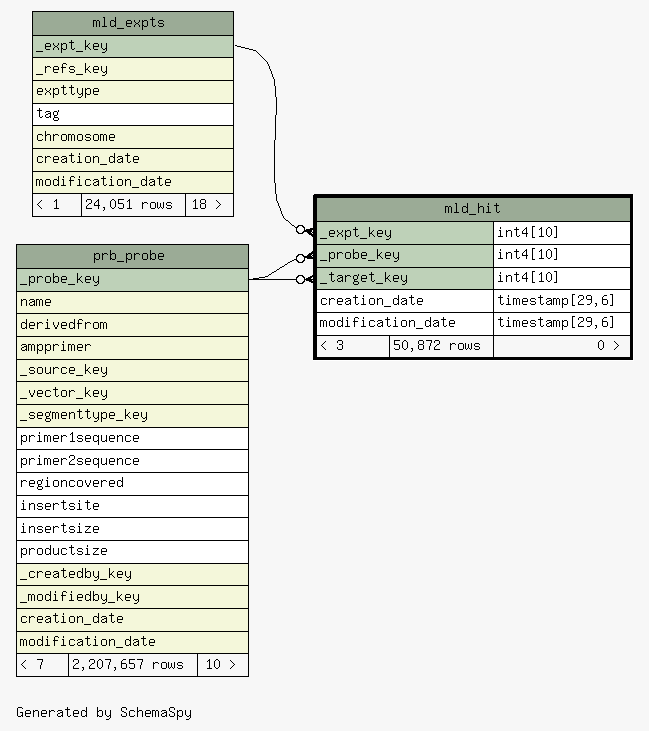

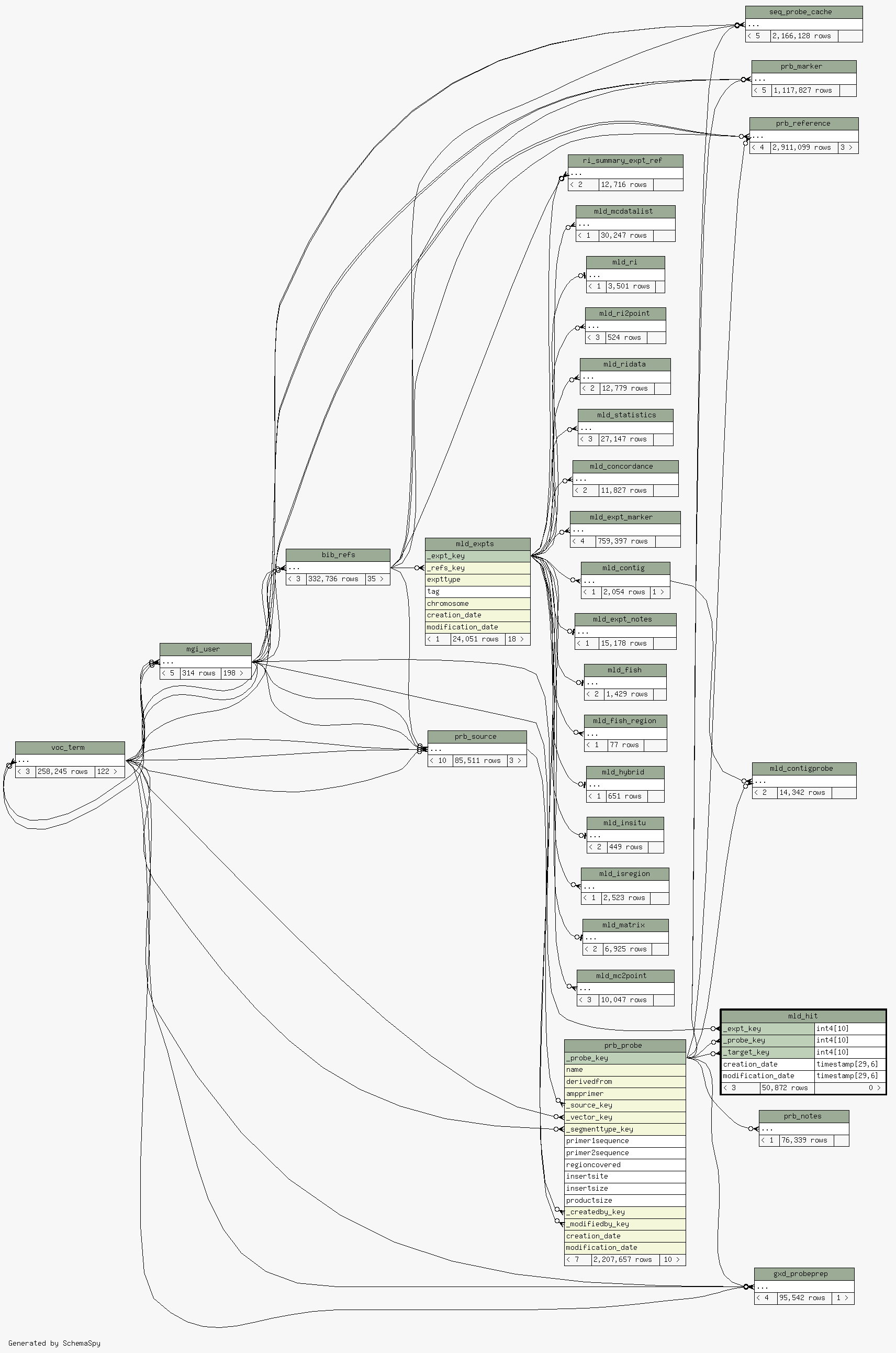

Close relationships  within of separation:
