Table mgd.mgd.all_knockout_cache Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_knockout_key int4 10
_marker_key int4 10
mrk_marker._marker_key all_knockout_cache__marker_key R
_allele_key int4 10  √  null
all_allele._allele_key all_knockout_cache__allele_key R
holder varchar 30
repository varchar 15
companyid varchar 30  √  null
nihid varchar 30  √  null
jrsid varchar 30  √  null
_createdby_key int4 10
mgi_user._user_key all_knockout_cache__createdby_key R
_modifiedby_key int4 10
mgi_user._user_key all_knockout_cache__modifiedby_key R
creation_date timestamp 29,6
modification_date timestamp 29,6

Table contained 257 rows at Mon Sep 26 19:11 EDT 2011

Indexes:
Column(s) Type Sort Constraint Name
_knockout_key Primary key Asc all_knockout_cache_pkey
_marker_key Must be unique Asc all_knockout_cache_idx_marker_key
_allele_key Performance Asc all_knockout_cache_idx_allele_key

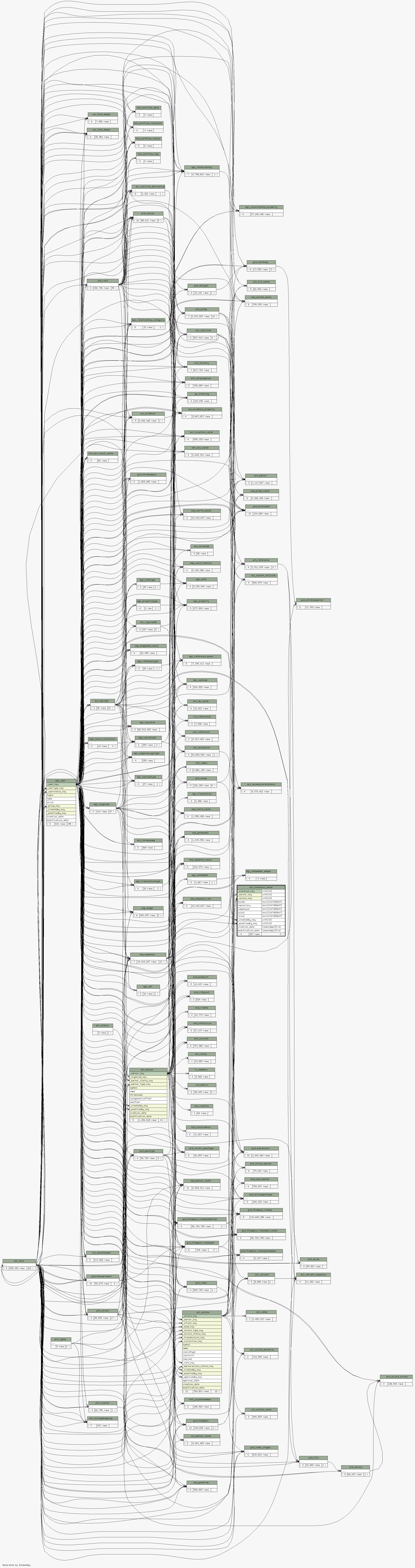

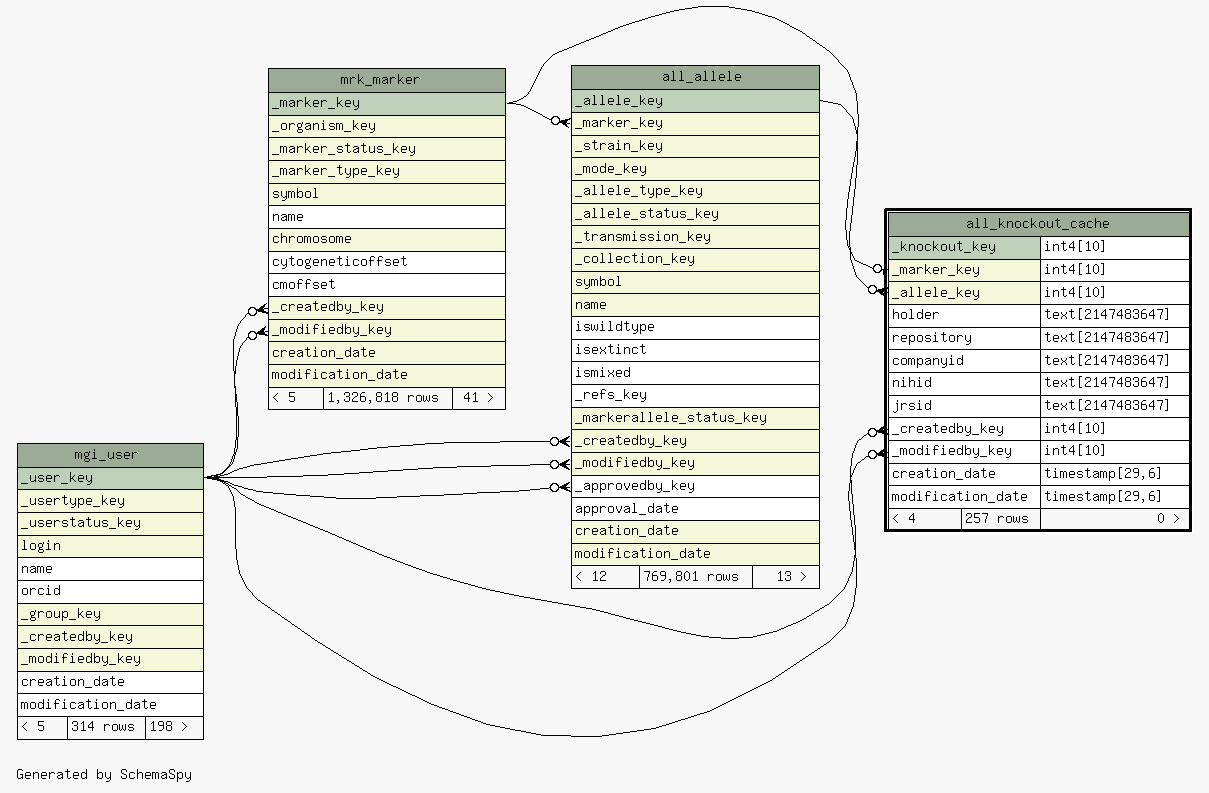

Close relationships  within of separation:
