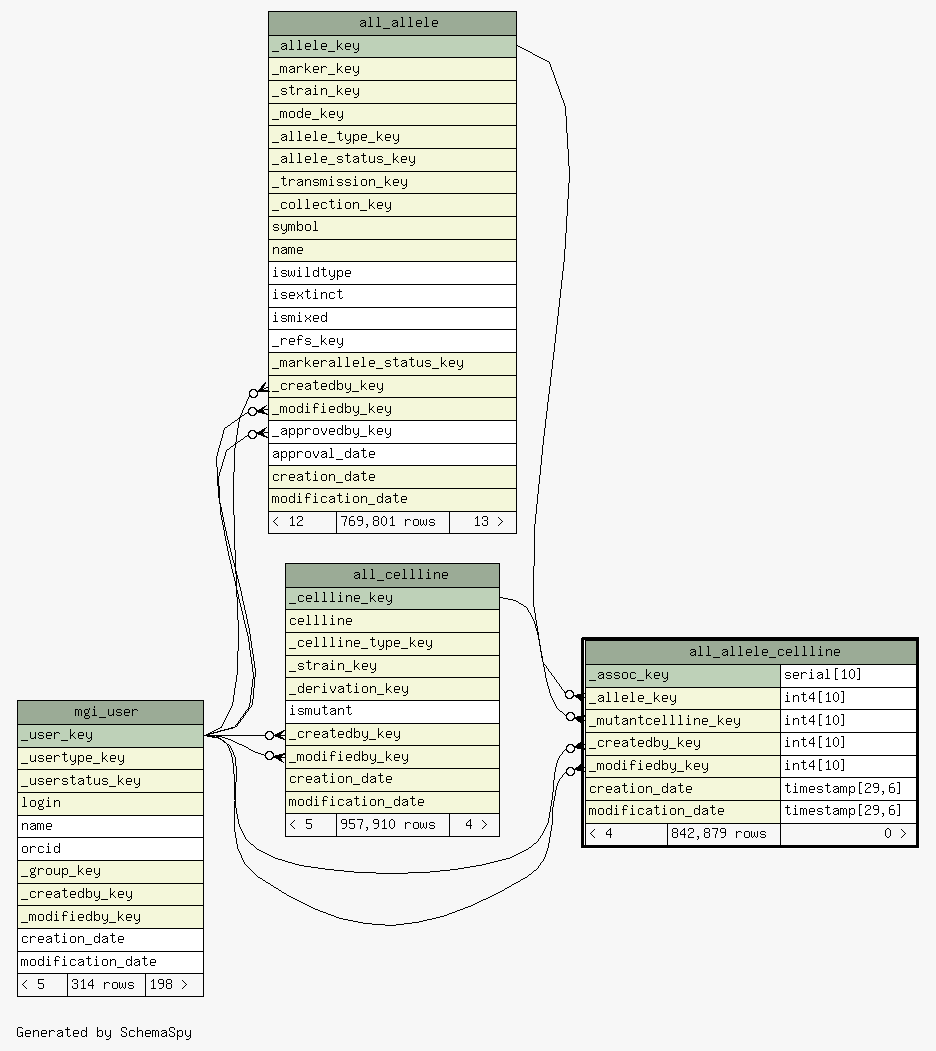

A record in this table represents the association between an Allele and a Cell Line. The type of Cell Line associated with the Allele depends on the Allele Type. See ALL_CellLine.

Generated by
SchemaSpy

Legend:

Primary key columns

Columns with indexes

Implied relationships

Excluded column relationships

< n > number of related tables

Column

Type

Size

Nulls

Auto

Default

Children

Parents

Comments

_assoc_key

serial

√

nextval('all_allele_cellline_seq'::regclass)

seq_source_assoc._assoc_key

Implied Constraint R

primary key

_allele_key

int4

all_allele._allele_key

all_allele_cellline__allele_key_fkey C

foreign key to ALL_Allele

_mutantcellline_key

int4

all_cellline._cellline_key

all_allele_cellline__mutantcellline_key_fkey R

foreign key to ALL_CellLine

_createdby_key

int4

1001

mgi_user._user_key

all_allele_cellline__createdby_key_fkey R

user who created the record

_modifiedby_key

int4

1001

mgi_user._user_key

all_allele_cellline__modifiedby_key_fkey R

user who last modified the record

creation_date

timestamp

29,6

now()

date record was created

modification_date

timestamp

29,6

now()

date record was last modified

Table contained 842,879 rows at Mon Sep 11 06:12 EDT 2023

Indexes:

Column(s)	Type	Sort	Constraint Name
_assoc_key	Primary key	Asc	all_allele_cellline_pkey
_allele_key + _mutantcellline_key	Performance	Asc/Asc	all_allele_cellline_idx_allele_key
_createdby_key	Performance	Asc	all_allele_cellline_idx_createdby_key
creation_date	Performance	Asc	all_allele_cellline_idx_creation_date
modification_date	Performance	Asc	all_allele_cellline_idx_modification_date
_modifiedby_key	Performance	Asc	all_allele_cellline_idx_modifiedby_key
_mutantcellline_key	Performance	Asc	all_allele_cellline_idx_mutantcellline_key
