Table pub.mgd.voc_evidence_property
A record in this table represents the association between an Annotation Evidence record and a Property. This stores the contextual data of a particular Annotation row. Each stanza that occurs in a given Annotation experiment (row) is stored as separate contextual data within the Annotation experiment. Each individual stanza is treated as a distinct contextual set of data that is associated with the proper Annotation row.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_evidenceproperty_key int4 10
voc_evidenceproperty_view._evidenceproperty_key Implied Constraint R
primary key
_annotevidence_key int4 10
voc_evidence._annotevidence_key voc_evidence_property__annotevidence_key_fkey C
foreign key to VOC_Evidence
_propertyterm_key int4 10
voc_term._term_key voc_evidence_property__propertyterm_key_fkey R
foreign key to VOC_Term; examples include: _Vocab_key = 82 (GO Property); 'evidence', 'anatomy', 'cell tyupe', 'text', etc.
stanza int4 10 a stanza represents a group of proeprties within the same evidence; group by _AnnotEvidence_key/stranza/sequenceNumber to retreive the ordered set of stanza's for a given annotation/evidence
sequencenum int4 10 sequnence number of the property within each stanza
value text 2147483647 the value that is assigned (i.e. the text) to the property
_createdby_key int4 10 1001
mgi_user._user_key voc_evidence_property__createdby_key_fkey R
user who created the record
_modifiedby_key int4 10 1001
mgi_user._user_key voc_evidence_property__modifiedby_key_fkey R
user who last modified the record
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 1,275,436 rows at Mon Nov 20 05:26 EST 2017

Indexes:
Column(s) Type Sort Constraint Name
_evidenceproperty_key Primary key Asc voc_evidence_property_pkey
_annotevidence_key Performance Asc voc_evidence_property_idx_clustered
_createdby_key Performance Asc voc_evidence_property_idx_createdby_key
_modifiedby_key Performance Asc voc_evidence_property_idx_modifiedby_key
_propertyterm_key Performance Asc voc_evidence_property_idx_propertyterm_key

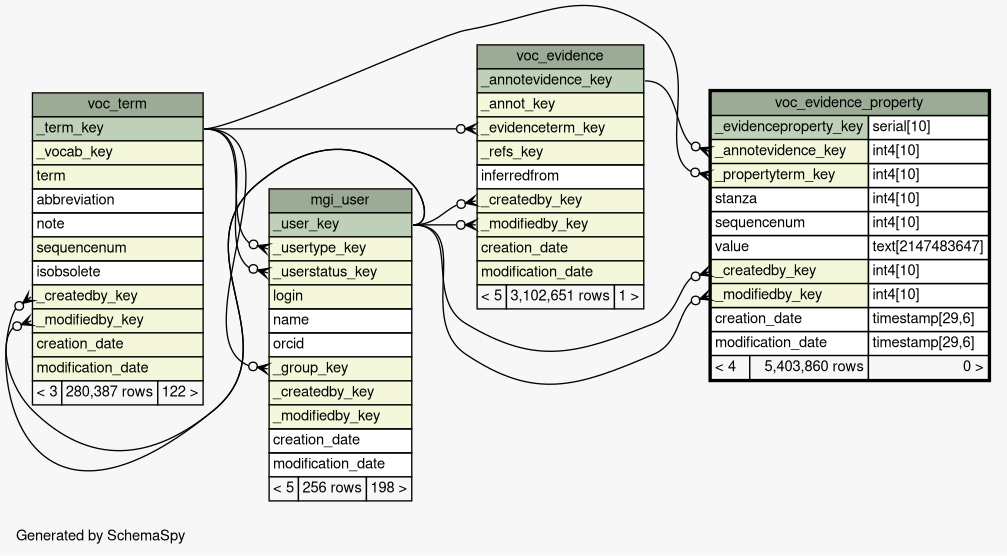

Close relationships  within of separation:
