Table pub.mgd.mld_mcdatalist
Defines Haplotype data for Cross Experiments. Haplotype data records haplotypes and number of offspring for Experimental Markers designated as having Haplotype data (MLD_Expt_Marker.matrixData = 1).

Detail of MLD_Matrix.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_expt_key int4 10
mld_expts._expt_key mld_mcdatalist__expt_key_fkey C
foreign key to MLD_Expts
sequencenum int4 10 sequence number for ordering records
alleleline text 2147483647 haplotypes for marker; order of alleles must correspond with order of Markers in Experiment Marker list (MLD_Expt_Marker)
offspringnmbr int4 10 designates number of offspring detected with haplotype
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 30,247 rows at Mon Nov 20 05:26 EST 2017

Indexes:
Column(s) Type Sort Constraint Name
_expt_key + sequencenum Primary key, Used to cluster data Asc/Asc mld_mcdatalist_pkey

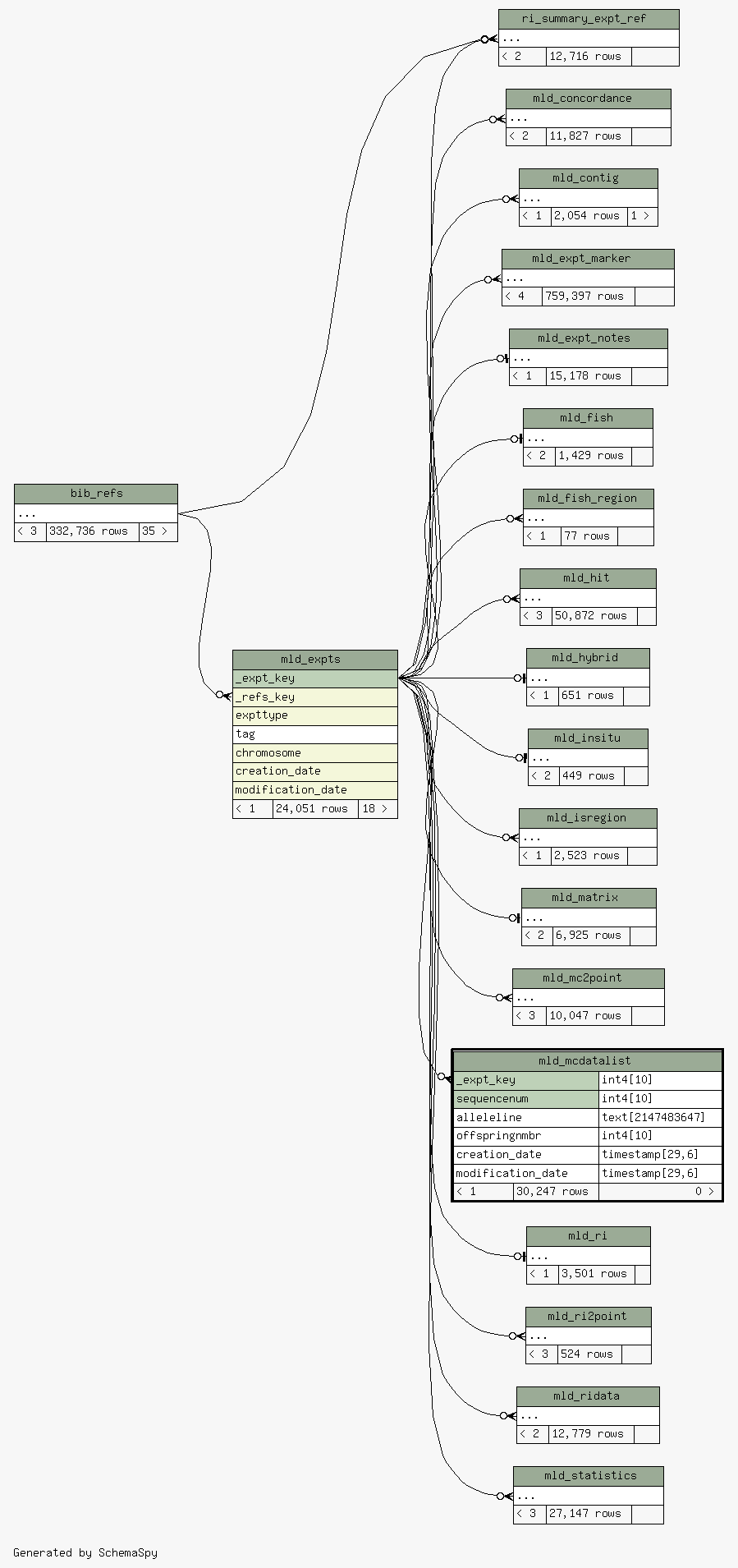

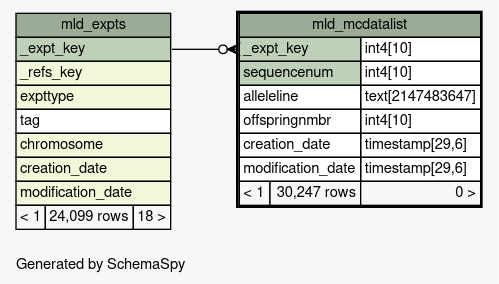

Close relationships  within of separation:
