Table pub.mgd.img_imagepane
A record in this table represents an Image Pane. An Image hast at least one Image Pane.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_imagepane_key int4 10
gxd_assay._imagepane_key gxd_assay__imagepane_key_fkey R
gxd_assay_view._imagepane_key Implied Constraint R
gxd_insituresultimage._imagepane_key gxd_insituresultimage__imagepane_key_fkey R
gxd_isresultimage_view._imagepane_key Implied Constraint R
img_imagepane_assoc._imagepane_key img_imagepane_assoc__imagepane_key_fkey R
img_imagepane_assoc_view._imagepane_key Implied Constraint R
img_imagepanegxd_view._imagepane_key Implied Constraint R
primary key
_image_key int4 10
img_image._image_key img_imagepane__image_key_fkey C
foreign key to IMG_Image
panelabel text 2147483647  √  null pane label
x int4 10  √  null x coordinate of image pdf
y int4 10  √  null y coordinate of image pdf
width int4 10  √  null width of image pdf
height int4 10  √  null height of image pdf
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 409,249 rows at Mon Nov 20 05:26 EST 2017

Indexes:
Column(s) Type Sort Constraint Name
_imagepane_key Primary key, Used to cluster data Asc img_imagepane_pkey
_image_key Performance Asc img_imagepane_idx_image_key

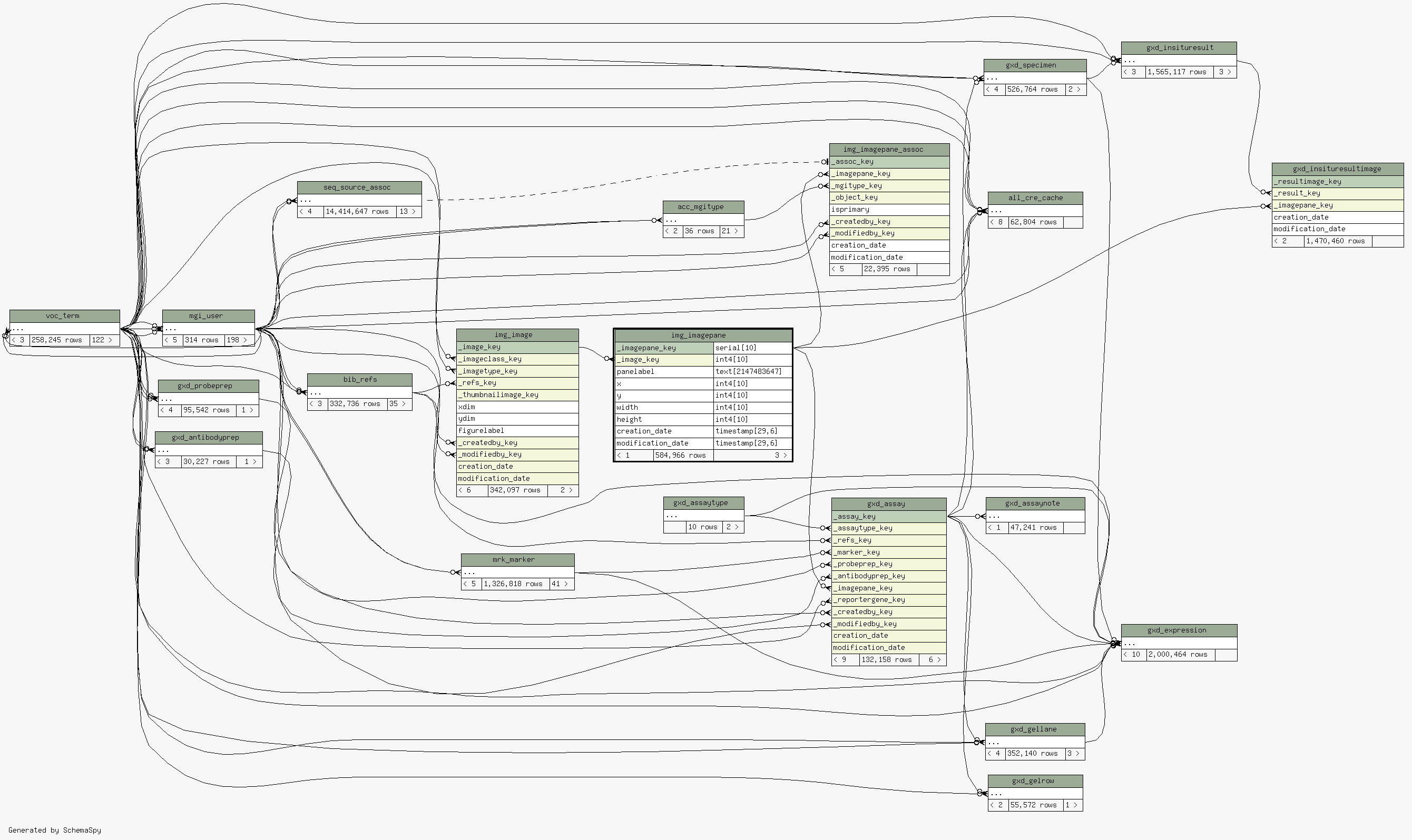

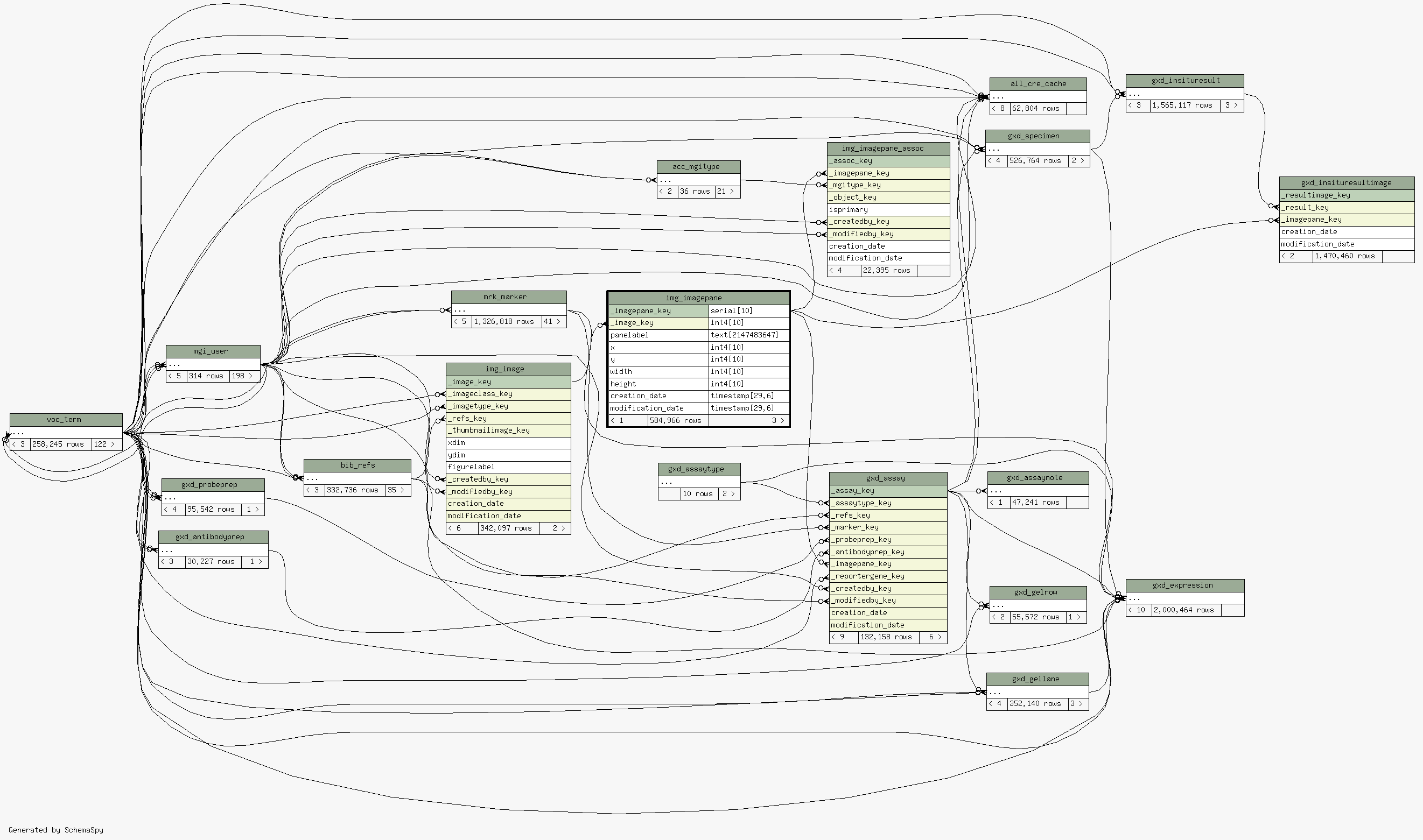

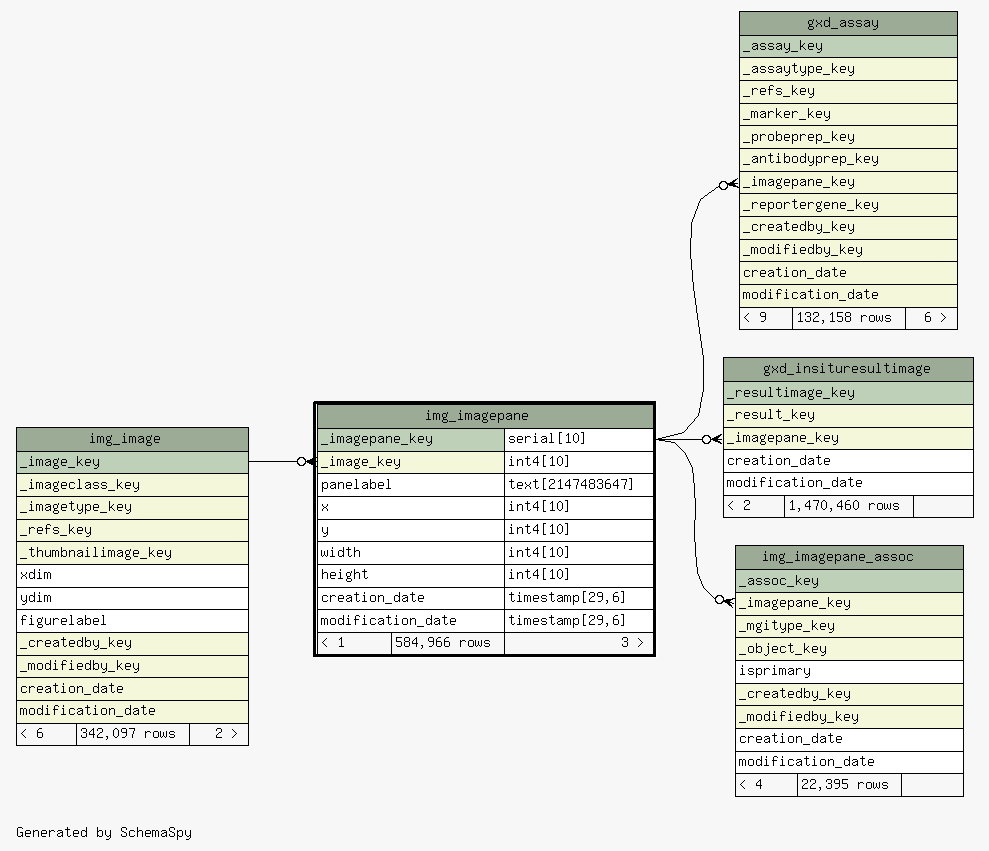

Close relationships  within of separation:
