Table pub.mgd.gxd_gellanestructure
Defines a relationship between a Gel Lane and an Anatomical Structure. A Gel Lane can correspond to one or more Anatomical Structures.

See GXD_GelLane, VOC_Term_EMAPA.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_gellane_key int4 10
gxd_gellane._gellane_key gxd_gellanestructure__gellane_key_fkey C
foreign key to GXD_GelLane
_emapa_term_key int4 10
voc_term._term_key gxd_gellanestructure__emapa_term_key_fkey R
foreign key to VOC_Term where _Vocab_key = 90 (EMAPA)
_stage_key int4 10
gxd_theilerstage._stage_key gxd_gellanestructure__stage_key_fkey R
foreign key to GXD_TheilerStage
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 224,261 rows at Mon Nov 20 05:26 EST 2017

Indexes:
Column(s) Type Sort Constraint Name
_gellane_key + _emapa_term_key + _stage_key Primary key, Used to cluster data Asc/Asc/Asc gxd_gellanestructure_pkey
_emapa_term_key Performance Asc gxd_gellanestructure_idx_emapa_term_key
_stage_key Performance Asc gxd_gellanestructure_idx_stage_key

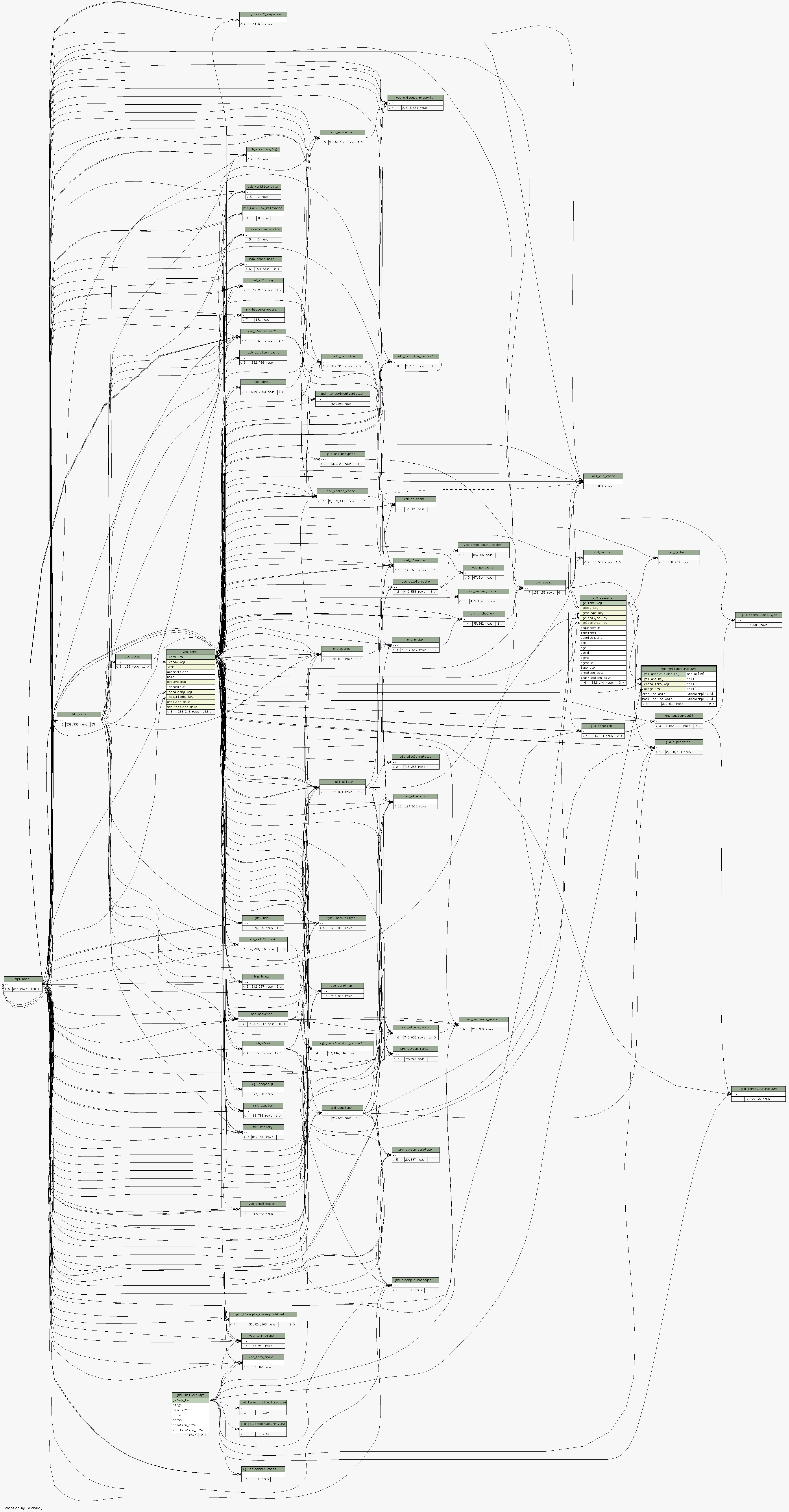

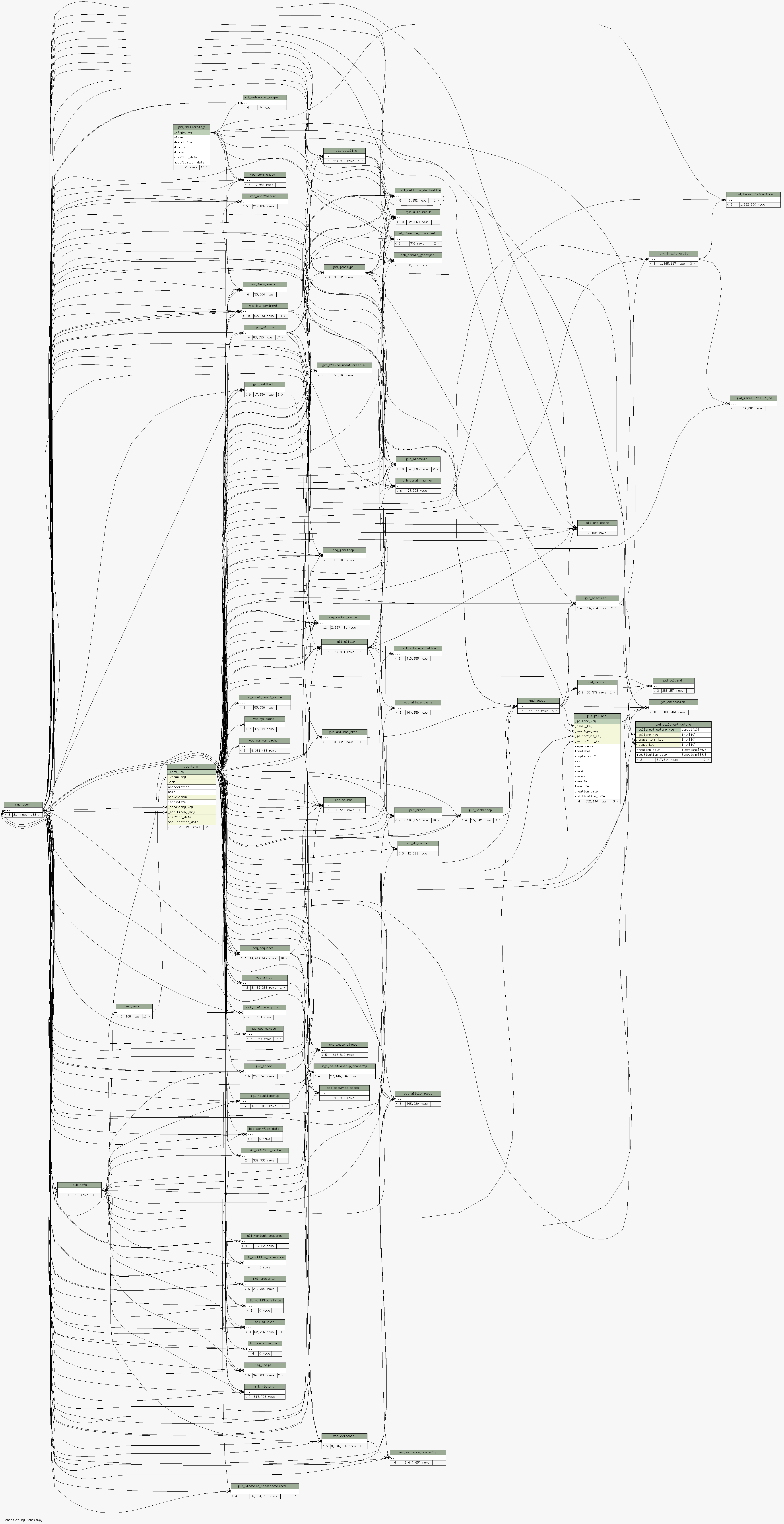

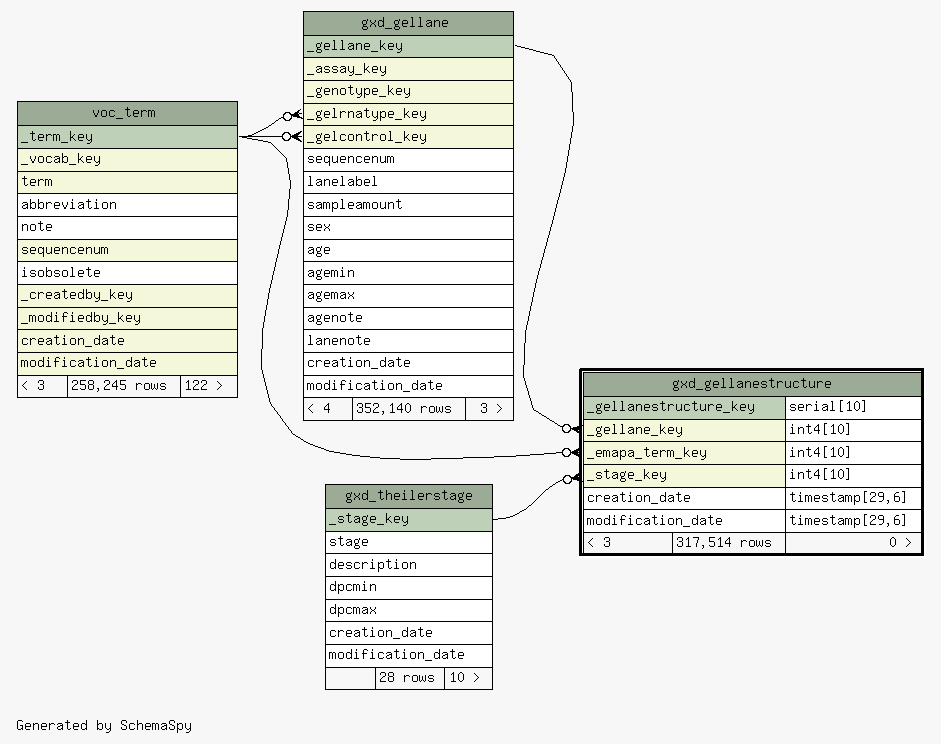

Close relationships  within of separation:
