MicroCT for Project: NIH-0719
Test Description: The µCT40 scans dissected bones and provides detailed information on bone mass and architecture. Multiple bones are placed into sample holders and scanned automatically. The researcher than uses instrument software to select regions of interest for analysis. Trabecular bone parameters are analyzed in the fifth lumbar vertebrae (LV5) at 16 micrometer resolution and cortical bone parameters are analyzed in the femur midshaft at a resolution of 20 micrometers.

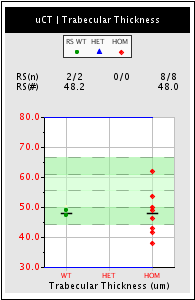

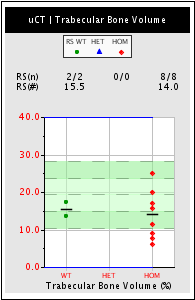

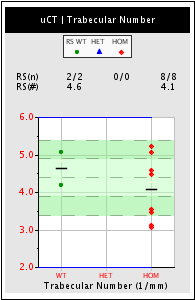

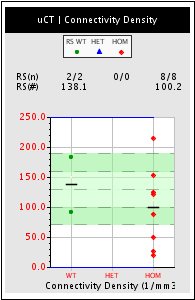

Results
Results
M-68
wt		 M-79
wt		 M-67
hom		 M-71
hom		 M-78
hom		 M-82
hom
M-89
hom		 M-91
hom		 M-100
hom		 M-105
hom

Results

Lumbar 5 Vertebra




Midshaft Femur




  MicroCT Data for Project: NIH-0719 - Results        Export Data to Spreadsheet
Mouse
Label 		Genotype Age (days) Position Image Thumbnail Movie Sampno Measno VOX-TV VOX-BV VOX-BV/TV Conn-Dens TRI-SMI DT-Tb.N* DT-Tb.Th* DT-Tb.Sp* DT-Tb.(1/N).SD* DT-Tb.Th.SD* DT-Tb.Sp.SD* TRI-TV TRI-BV TRI-BV/TV TRI-BS TRI-BS/BV TRI-Tb.N TRI-Tb.Th TRI-Tb.Sp TRI-DA MeasNumSlices
M-67 hom 146 Femur View 6189 8909 0.7506 0.3085 6.15 0.0 0.933 0.0 0.0 0.0 0.0 0.0 0.0 1.09 0.295 0.27 3.193 10.817 1.465 0.184 0.497 10.948 20
M-67 hom 145 Vertebrae View 6189 8837 2.8704 0.1765 6.15 19.335 3.0318 3.0609 0.0379 0.3274 0.1923 0.0116 0.1923 2.8007 0.1353 0.0483 9.5089 70.2922 1.6976 0.0285 0.5606 1.7726 263
M-71 hom 146 Femur View 6190 8910 0.6405 0.3573 15.84 0.0 1.27 0.0 0.0 0.0 0.0 0.0 0.0 0.911 0.34 0.373 2.754 8.08 1.51 0.247 0.414 12.227 20
M-71 hom 145 Vertebrae View 6190 8838 3.2348 0.5124 15.84 121.1808 2.2323 4.5758 0.05 0.2205 0.117 0.015 0.117 3.1537 0.456 0.1446 23.0613 50.5686 3.6562 0.0396 0.234 1.8501 263
M-78 hom 145 Femur View 6171 8832 0.8118 0.4026 7.61 0.0 1.2 0.0 0.0 0.0 0.0 0.0 0.0 1.148 0.383 0.334 3.211 8.364 1.398 0.239 0.475 9.19 20
M-78 hom 145 Vertebrae View 6171 8793 2.9539 0.2249 7.61 27.4212 2.9299 3.1263 0.0417 0.3241 0.1819 0.0134 0.1819 2.8791 0.1771 0.0615 10.6844 60.3322 1.8555 0.0331 0.5058 1.9377 246
M-82 hom 146 Femur View 6192 8912 0.8632 0.4161 17.08 0.0 1.106 0.0 0.0 0.0 0.0 0.0 0.0 1.253 0.396 0.316 3.367 8.486 1.343 0.235 0.508 8.788 20
M-82 hom 145 Vertebrae View 6192 8842 3.1772 0.5427 17.08 125.4243 2.0422 4.4872 0.0538 0.2223 0.1102 0.017 0.1102 3.0979 0.4929 0.1591 22.7665 46.1884 3.6746 0.0433 0.2288 1.8933 263
M-89 hom 146 Femur View 6193 8850 0.667 0.3421 9.02 0.0 1.107 0.0 0.0 0.0 0.0 0.0 0.0 0.951 0.326 0.343 2.882 8.825 1.514 0.226 0.433 9.545 20
M-89 hom 146 Vertebrae View 6193 8843 2.8003 0.2526 9.02 50.5298 2.575 3.5433 0.043 0.2813 0.1478 0.0139 0.1478 2.7269 0.2105 0.0772 12.2976 58.4331 2.2549 0.0342 0.4093 1.9685 263
M-91 hom 145 Femur View 6166 8827 0.7907 0.3575 11.4 0.0 1.079 0.0 0.0 0.0 0.0 0.0 0.0 1.132 0.341 0.301 3.269 9.568 1.443 0.209 0.483 10.386 20
M-91 hom 145 Vertebrae View 6166 8788 3.1279 0.3566 11.4 88.5573 2.3772 3.4573 0.0465 0.2977 0.1685 0.0152 0.1685 3.0524 0.3047 0.0998 16.3582 53.6797 2.6795 0.0373 0.3359 1.5533 246
M-100 hom 139 Femur View 6014 8552 0.7802 0.3732 20.02 0.0 1.063 0.0 0.0 0.0 0.0 0.0 0.0 1.215 0.356 0.293 3.233 9.077 1.33 0.22 0.531 10.386 20
M-100 hom 138 Vertebrae View 6014 8484 3.0052 0.6018 20.02 215.6261 1.775 5.2264 0.049 0.1901 0.0932 0.0147 0.0932 2.9342 0.5457 0.186 26.1845 47.9828 4.462 0.0417 0.1824 1.7885 263
M-105 hom 139 Femur View 6015 8553 0.8969 0.5063 24.97 0.0 1.497 0.0 0.0 0.0 0.0 0.0 0.0 1.273 0.482 0.378 3.308 6.862 1.299 0.291 0.478 9.32 20
M-105 hom 138 Vertebrae View 6015 8485 2.8954 0.723 24.97 153.6944 1.1475 5.0717 0.062 0.2003 0.0877 0.0219 0.0877 2.816 0.6869 0.2439 25.8349 37.61 4.5872 0.0532 0.1648 2.0073 263
M-68 wt 140 Femur View 6013 8551 0.6607 0.376 17.31 0.0 1.184 0.0 0.0 0.0 0.0 0.0 0.0 0.878 0.358 0.407 2.748 7.672 1.564 0.26 0.378 11.121 20
M-68 wt 139 Vertebrae View 6013 8483 2.8401 0.4917 17.31 183.7947 2.0211 5.075 0.0472 0.196 0.1007 0.0149 0.1007 2.764 0.4349 0.1574 23.0961 53.1015 4.1781 0.0377 0.2017 1.6645 263
M-79 wt 146 Femur View 6191 8911 0.6027 0.3518 13.69 0.0 1.31 0.0 0.0 0.0 0.0 0.0 0.0 0.831 0.335 0.403 2.621 7.813 1.576 0.256 0.378 11.64 20
M-79 wt 145 Vertebrae View 6191 8840 2.8346 0.3879 13.69 92.4292 2.1599 4.1818 0.0491 0.242 0.1066 0.0159 0.1066 2.7573 0.3402 0.1234 17.0774 50.2026 3.0967 0.0398 0.2831 1.7953 263
