Open Field for Project: NIH-0719

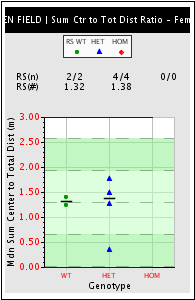

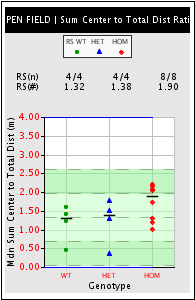

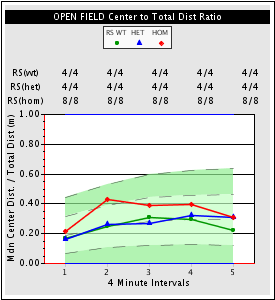

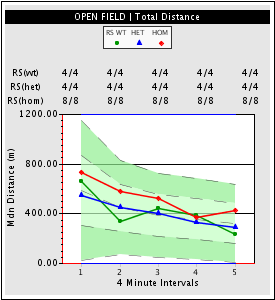

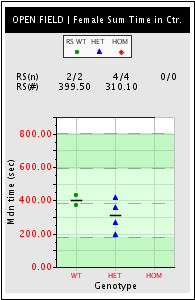

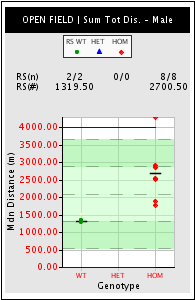

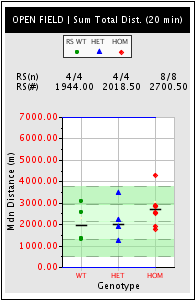

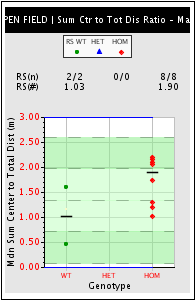

Test Description: A large arena (40 cm x 40 cm) with infrared beams at three different levels is used to record rearing, hole poke, and locomotor activity. The animal is placed in the center and its activity is measured for 20 minutes. Data from this test is analyzed in five, 4-minute intervals. The total distance traveled (cm), vertical movement number (rearing), number of hole pokes, and the center:total distance ratio are then graphed.








Results Data
GenotypeMedian Rearing ActivityMedian Hole Poke ActivityMedian Normalized Slope**
+/+ (n=4)18.58.5-3.06
+/- (n=4)10.535.5-4.38
-/- (n=8)101.522.0-3.35
** Normalized slope is based on total distance traveled.


Genotype Mouse Label % of Total Distance Normalized
Slope
Interval 1
(4 min) 		Interval 2
(8 min) 		Interval 3
(12 min) 		Interval 4
(16 min) 		Interval 5
(20 min)
hom M-67 20.78 23.53 20.22 16.86 18.62 -1.1
hom M-71 33.15 26.72 13.64 15.5 10.99 -5.55
hom M-78 27.51 24.08 18.96 14.65 14.79 -3.49
hom M-82 37.18 22.7 18.48 12.53 9.11 -6.63
hom M-89 28.46 22.38 19.36 12.43 17.37 -3.21
hom M-91 25.79 23.79 20.81 15.82 13.79 -3.2
hom M-100 27.41 20.57 15.91 20.39 15.72 -2.36
hom M-105 38.81 16.67 20.94 8.95 14.63 -5.61
(hom)   Slope  Median:   -3.35
Mean:   -3.89
wt M-68 17.59 11.19 31.17 30.02 10.03 0.37
wt F-75 27.19 17.92 19.65 15.25 20.0 -1.71
wt M-79 46.54 16.53 17.94 12.66 6.33 -8.43
wt F-86 31.87 21.75 15.87 19.67 10.84 -4.41
(wt)   Slope  Median:   -3.06
Mean:   -3.55
het F-73 25.62 17.71 24.27 10.82 21.58 -1.5
het F-85 37.55 16.07 15.82 17.9 12.66 -4.8
het F-95 34.32 18.1 17.12 14.96 15.5 -4.08
het F-97 28.73 26.53 16.02 20.19 8.54 -4.67
(het)   Slope  Median:   -4.38
Mean:   -3.76




  Openfield New Analysis data for Project: NIH-0719 - Results        Export Data to Spreadsheet
Mouse Label Genotype Age (days) SAMPLE SAMP DUR TOTAL DIST VACTV VMOVNO V TIME STRNO CTR DIST PSA PRI SAMP DUR PRI SAMP AUX SAMP DUR AUX SAMP
F-73 het 85 1 240.0 11 11 4.2 4 5
F-73 het 85 1 240.0 476 3 2 0.6 33 79 P 4 5 0 0
F-73 het 85 2 240.0 329 0 0 0.0 30 103 P 4 5 0 0
F-73 het 85 3 240.0 451 4 2 3.0 38 88 P 4 5 0 0
F-73 het 85 4 240.0 201 0 0 0.0 32 60 P 4 5 0 0
F-73 het 85 5 240.0 401 4 3 1.8 30 118 P 4 5 0 0
F-73 het 85 5 240.0 5 5 3.0 4 5
F-73 het 85 4 240.0 9 8 4.4 4 5
F-73 het 85 3 240.0 6 6 2.4 4 5
F-73 het 85 2 240.0 17 15 8.3 4 5
F-85 het 85 1 240.0 451 0 0 0.0 35 60 P 4 5 0 0
F-85 het 85 5 240.0 152 0 0 0.0 15 8 P 4 5 0 0
F-85 het 85 5 240.0 2 2 1.4 4 5
F-85 het 85 4 240.0 1 1 0.2 4 5
F-85 het 85 4 240.0 215 0 0 0.0 17 4 P 4 5 0 0
F-85 het 85 3 240.0 190 0 0 0.0 34 7 P 4 5 0 0
F-85 het 85 2 240.0 1 1 0.0 4 5
F-85 het 85 3 240.0 15 8 10.8 4 5
F-85 het 85 2 240.0 193 0 0 0.0 23 18 P 4 5 0 0
F-85 het 85 1 240.0 14 14 5.1 4 5
F-95 het 85 1 240.0 1191 29 17 22.8 40 194 P 4 5 0 0
F-95 het 85 5 240.0 0 0 0.0 4 5
F-95 het 85 5 240.0 538 39 19 15.2 31 177 P 4 5 0 0
F-95 het 85 4 240.0 519 12 6 6.3 31 178 P 4 5 0 0
F-95 het 85 4 240.0 8 6 3.3 4 5
F-95 het 85 3 240.0 594 29 17 14.5 34 202 P 4 5 0 0
F-95 het 85 3 240.0 1 1 0.5 4 5
F-95 het 85 2 240.0 1 1 0.4 4 5
F-95 het 85 2 240.0 628 26 14 14.9 33 195 P 4 5 0 0
F-95 het 85 1 240.0 2 2 0.4 4 5
F-97 het 85 1 240.0 12 9 6.5 4 5
F-97 het 85 5 240.0 1 1 0.6 4 5
F-97 het 85 5 240.0 186 0 0 0.0 25 77 P 4 5 0 0
F-97 het 85 4 240.0 440 7 4 4.1 34 216 P 4 5 0 0
F-97 het 85 4 240.0 21 20 15.2 4 5
F-97 het 85 3 240.0 349 8 3 4.5 29 143 P 4 5 0 0
F-97 het 85 2 240.0 17 16 9.7 4 5
F-97 het 85 3 240.0 16 15 9.1 4 5
F-97 het 85 2 240.0 578 6 3 3.1 27 124 P 4 5 0 0
F-97 het 85 1 240.0 626 6 4 1.8 36 140 P 4 5 0 0
M-67 hom 85 1 240.0 520 46 25 30.0 43 150 P 4 5 0 0
M-67 hom 85 5 240.0 466 66 26 38.9 45 247 P 4 5 0 0
M-67 hom 85 5 240.0 3 3 1.4 4 5
M-67 hom 85 4 240.0 6 6 3.3 4 5
M-67 hom 85 4 240.0 422 88 36 58.0 44 163 P 4 5 0 0
M-67 hom 85 3 240.0 10 6 7.8 4 5
M-67 hom 85 3 240.0 506 68 32 41.3 39 215 P 4 5 0 0
M-67 hom 85 2 240.0 13 12 5.2 4 5
M-67 hom 85 2 240.0 589 64 26 33.1 41 273 P 4 5 0 0
M-67 hom 85 1 240.0 2 1 0.6 4 5
M-71 hom 85 1 240.0 11 7 5.2 4 5
M-71 hom 85 5 240.0 195 2 1 1.6 27 52 P 4 5 0 0
M-71 hom 85 5 240.0 0 0 0.0 4 5
M-71 hom 85 4 240.0 3 2 1.6 4 5
M-71 hom 85 3 240.0 242 13 4 6.7 27 58 P 4 5 0 0
M-71 hom 85 3 240.0 2 2 0.7 4 5
M-71 hom 85 2 240.0 474 21 9 11.3 35 107 P 4 5 0 0
M-71 hom 85 4 240.0 275 12 3 4.8 26 26 P 4 5 0 0
M-71 hom 85 2 240.0 9 9 5.1 4 5
M-71 hom 85 1 240.0 588 17 9 7.8 33 114 P 4 5 0 0
M-78 hom 85 1 240.0 10 7 5.1 4 5
M-78 hom 85 1 240.0 785 32 16 13.3 39 177 P 4 5 0 0
M-78 hom 85 5 240.0 422 42 19 16.4 28 232 P 4 5 0 0
M-78 hom 85 5 240.0 1 1 0.0 4 5
M-78 hom 85 4 240.0 1 1 0.0 4 5
M-78 hom 85 4 240.0 418 49 23 19.8 41 213 P 4 5 0 0
M-78 hom 85 3 240.0 541 84 31 30.3 30 249 P 4 5 0 0
M-78 hom 85 3 240.0 13 6 5.7 4 5
M-78 hom 85 2 240.0 687 71 33 31.7 33 313 P 4 5 0 0
M-78 hom 85 2 240.0 0 0 0.0 4 5
M-82 hom 85 1 240.0 706 35 22 25.1 42 88 P 4 5 0 0
M-82 hom 85 3 240.0 351 47 17 27.9 37 78 P 4 5 0 0
M-82 hom 85 5 240.0 0 0 0.0 4 5
M-82 hom 85 5 240.0 173 14 8 12.5 43 20 P 4 5 0 0
M-82 hom 85 4 240.0 238 14 6 16.3 40 95 P 4 5 0 0
M-82 hom 85 4 240.0 14 9 9.8 4 5
M-82 hom 85 1 240.0 4 4 1.6 4 5
M-82 hom 85 3 240.0 2 2 0.6 4 5
M-82 hom 85 2 240.0 10 9 8.5 4 5
M-82 hom 85 2 240.0 431 33 15 21.8 37 147 P 4 5 0 0
M-89 hom 85 1 240.0 1 1 0.1 4 5
M-89 hom 85 1 240.0 726 36 16 18.6 44 218 P 4 5 0 0
M-89 hom 85 5 240.0 443 31 15 17.2 38 146 P 4 5 0 0
M-89 hom 85 5 240.0 2 2 1.0 4 5
M-89 hom 85 4 240.0 317 38 16 14.7 43 171 P 4 5 0 0
M-89 hom 85 4 240.0 1 1 0.4 4 5
M-89 hom 85 3 240.0 494 40 21 18.5 44 242 P 4 5 0 0
M-89 hom 85 3 240.0 12 8 9.4 4 5
M-89 hom 85 2 240.0 571 40 17 20.7 44 284 P 4 5 0 0
M-89 hom 85 2 240.0 7 3 4.2 4 5
M-91 hom 85 1 240.0 20 18 7.4 4 5
M-91 hom 85 2 240.0 18 12 9.0 4 5
M-91 hom 85 5 240.0 393 60 25 31.1 32 112 P 4 5 0 0
M-91 hom 85 5 240.0 2 1 1.1 4 5
M-91 hom 85 4 240.0 451 49 21 22.4 28 147 P 4 5 0 0
M-91 hom 85 4 240.0 10 5 4.7 4 5
M-91 hom 85 3 240.0 593 51 17 19.6 37 210 P 4 5 0 0
M-91 hom 85 3 240.0 18 12 11.6 4 5
M-91 hom 85 1 240.0 735 60 25 23.5 38 271 P 4 5 0 0
M-91 hom 85 2 240.0 678 71 32 33.1 38 270 P 4 5 0 0
M-100 hom 84 1 240.0 6 5 2.0 4 5
M-100 hom 84 1 240.0 1175 43 19 17.9 39 187 P 4 5 0 0
M-100 hom 84 5 240.0 674 51 19 20.2 34 186 P 4 5 0 0
M-100 hom 84 5 240.0 0 0 0.0 4 5
M-100 hom 84 4 240.0 874 49 19 31.5 38 196 P 4 5 0 0
M-100 hom 84 4 240.0 11 7 8.7 4 5
M-100 hom 84 3 240.0 682 48 24 21.2 41 227 P 4 5 0 0
M-100 hom 84 3 240.0 2 2 0.6 4 5
M-100 hom 84 2 240.0 8 6 3.8 4 5
M-100 hom 84 2 240.0 882 63 27 33.2 43 270 P 4 5 0 0
M-105 hom 84 1 240.0 6 3 2.6 4 5
M-105 hom 84 1 240.0 1127 75 32 23.5 47 226 P 4 5 0 0
M-105 hom 84 5 240.0 425 24 11 9.7 35 208 P 4 5 0 0
M-105 hom 84 5 240.0 21 13 10.5 4 5
M-105 hom 84 4 240.0 260 33 13 13.7 37 114 P 4 5 0 0
M-105 hom 84 4 240.0 0 0 0.0 4 5
M-105 hom 84 3 240.0 608 59 25 24.6 41 257 P 4 5 0 0
M-105 hom 84 3 240.0 11 10 6.6 4 5
M-105 hom 84 2 240.0 13 7 5.7 4 5
M-105 hom 84 2 240.0 484 29 14 12.5 40 248 P 4 5 0 0
M-68 wt 85 1 240.0 228 1 1 0.5 24 37 P 4 5 0 0
M-68 wt 85 1 240.0 1 1 0.5 4 5
M-68 wt 85 5 240.0 130 0 0 0.0 29 10 P 4 5 0 0
M-68 wt 85 5 240.0 1 1 0.1 4 5
M-68 wt 85 4 240.0 5 4 0.8 4 5
M-68 wt 85 4 240.0 389 1 1 0.3 43 34 P 4 5 0 0
M-68 wt 85 3 240.0 0 0 0.0 4 5
M-68 wt 85 3 240.0 404 7 5 2.5 36 21 P 4 5 0 0
M-68 wt 85 2 240.0 145 6 3 2.3 34 12 P 4 5 0 0
M-68 wt 85 2 240.0 0 0 0.0 4 5
F-75 wt 85 1 240.0 2 2 0.9 4 5
F-75 wt 85 5 240.0 509 31 19 19.3 31 109 P 4 5 0 0
F-75 wt 85 5 240.0 0 0 0.0 4 5
F-75 wt 85 4 240.0 388 23 13 18.0 33 149 P 4 5 0 0
F-75 wt 85 4 240.0 1 1 0.1 4 5
F-75 wt 85 3 240.0 500 39 15 20.1 42 151 P 4 5 0 0
F-75 wt 85 3 240.0 1 1 0.3 4 5
F-75 wt 85 1 240.0 692 17 8 11.4 35 122 P 4 5 0 0
F-75 wt 85 2 240.0 456 13 8 9.8 41 148 P 4 5 0 0
F-75 wt 85 2 240.0 13 7 5.2 4 5
M-79 wt 85 1 240.0 2 2 0.3 4 5
M-79 wt 85 5 240.0 0 0 0.0 4 5
M-79 wt 85 5 240.0 85 0 0 0.0 31 43 P 4 5 0 0
M-79 wt 85 4 240.0 170 7 3 3.5 27 57 P 4 5 0 0
M-79 wt 85 4 240.0 0 0 0.0 4 5
M-79 wt 85 3 240.0 0 0 0.0 4 5
M-79 wt 85 3 240.0 241 10 5 7.0 23 75 P 4 5 0 0
M-79 wt 85 2 240.0 4 4 0.9 4 5
M-79 wt 85 2 240.0 222 1 1 1.4 29 64 P 4 5 0 0
M-79 wt 85 1 240.0 625 6 5 3.7 38 94 P 4 5 0 0
F-86 wt 85 1 240.0 11 5 3.7 4 5
F-86 wt 85 5 240.0 334 9 5 2.0 32 75 P 4 5 0 0
F-86 wt 85 5 240.0 0 0 0.0 4 5
F-86 wt 85 4 240.0 2 1 0.3 4 5
F-86 wt 85 1 240.0 982 7 3 1.5 43 179 P 4 5 0 0
F-86 wt 85 2 240.0 670 11 4 8.1 31 142 P 4 5 0 0
F-86 wt 85 4 240.0 606 11 7 6.7 31 152 P 4 5 0 0
F-86 wt 85 3 240.0 15 11 3.5 4 5
F-86 wt 85 3 240.0 489 10 4 7.3 42 178 P 4 5 0 0
F-86 wt 85 2 240.0 1 1 0.2 4 5
