MicroCT for Project: NIH-1841
Test Description: The µCT40 scans dissected bones and provides detailed information on bone mass and architecture. Multiple bones are placed into sample holders and scanned automatically. The researcher than uses instrument software to select regions of interest for analysis. Trabecular bone parameters are analyzed in the fifth lumbar vertebrae (LV5) at 16 micrometer resolution and cortical bone parameters are analyzed in the femur midshaft at a resolution of 20 micrometers.

Assay-Specific Summary :NIH-1841
Results

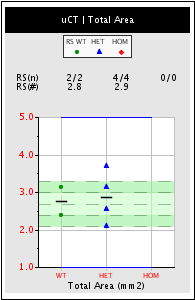

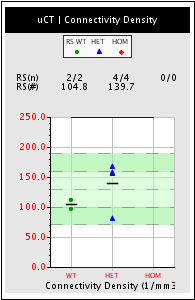

MicroCT: No notable difference.


Results
Results
M-79
wt		 M-108
wt		 M-124
het		 M-104
het		 M-107
het		 M-115
het

Results

Lumbar 5 Vertebra




Midshaft Femur


  MicroCT Data for Project: NIH-1841 - Results Export Data to Spreadsheet
Mouse
Label 		Genotype Age (days) Position Image Thumbnail Movie Sampno Measno VOX-TV VOX-BV VOX-BV/TV Conn-Dens TRI-SMI DT-Tb.N* DT-Tb.Th* DT-Tb.Sp* DT-Tb.(1/N).SD* DT-Tb.Th.SD* DT-Tb.Sp.SD* TRI-TV TRI-BV TRI-BV/TV TRI-BS TRI-BS/BV TRI-Tb.N TRI-Tb.Th TRI-Tb.Sp TRI-DA MeasNumSlices
M-104 het 117 Femur View 8465 12812 1.0039 0.5132 17.25 0.0 0.394 0.0 0.0 0.0 0.0 0.0 0.0 1.528 0.49 0.32 4.074 8.313 1.333 0.24 0.509 5.407 20
M-104 het 117 Vertebrae View 8465 12853 3.7619 0.649 17.25 167.0709 2.0178 4.6762 0.0498 0.2196 0.1179 0.0163 0.1179 3.6778 0.5855 0.1592 29.213 49.8953 3.9715 0.0401 0.2117 1.7716 263
M-107 het 117 Femur View 8466 12813 0.9008 0.4456 20.5 0.0 1.268 0.0 0.0 0.0 0.0 0.0 0.0 1.3 0.425 0.327 3.379 7.95 1.299 0.251 0.517 9.36 20
M-107 het 117 Vertebrae View 8466 12854 3.1795 0.6517 20.5 155.5259 1.7546 4.608 0.0557 0.2188 0.108 0.0171 0.108 3.0977 0.5992 0.1934 25.8432 43.1324 4.1713 0.0464 0.1934 1.7333 263
M-115 het 116 Femur View 8468 12815 0.6077 0.3694 10.71 0.0 1.334 0.0 0.0 0.0 0.0 0.0 0.0 0.871 0.352 0.404 2.681 7.614 1.538 0.262 0.387 11.383 20
M-115 het 116 Vertebrae View 8468 12856 2.4408 0.2615 10.71 79.8929 2.3901 3.686 0.0432 0.2726 0.123 0.014 0.123 2.3746 0.2191 0.0922 12.5451 57.27 2.6415 0.0349 0.3437 1.7792 263
M-124 het 116 Femur View 8469 12816 0.7197 0.4034 15.54 0.0 1.283 0.0 0.0 0.0 0.0 0.0 0.0 1.059 0.384 0.363 2.963 7.705 1.399 0.259 0.455 10.542 20
M-124 het 116 Vertebrae View 8469 12857 2.6835 0.417 15.54 156.1405 2.0597 4.0591 0.0477 0.2515 0.1452 0.0154 0.1452 2.6094 0.3631 0.1392 18.5566 51.099 3.5557 0.0391 0.2421 1.6526 263
M-79 wt 119 Femur View 8464 12811 0.9596 0.4787 16.2 0.0 1.292 0.0 0.0 0.0 0.0 0.0 0.0 1.3 0.456 0.351 3.493 7.656 1.343 0.261 0.483 9.917 20
M-79 wt 120 Vertebrae View 8464 12852 2.9685 0.4808 16.2 112.1797 2.1267 3.5648 0.0576 0.2917 0.1669 0.019 0.1669 2.8968 0.435 0.1502 18.8316 43.2947 3.2504 0.0462 0.2615 1.7391 263
M-108 wt 117 Femur View 8467 12814 0.6832 0.3528 12.8 0.0 1.153 0.0 0.0 0.0 0.0 0.0 0.0 0.991 0.336 0.339 2.934 8.718 1.479 0.229 0.446 10.374 20
M-108 wt 117 Vertebrae View 8467 12855 2.9439 0.3767 12.8 97.4893 2.3347 4.1698 0.0462 0.2432 0.1151 0.0146 0.1151 2.8668 0.3232 0.1128 17.6712 54.6692 3.0821 0.0366 0.2879 1.6832 263
